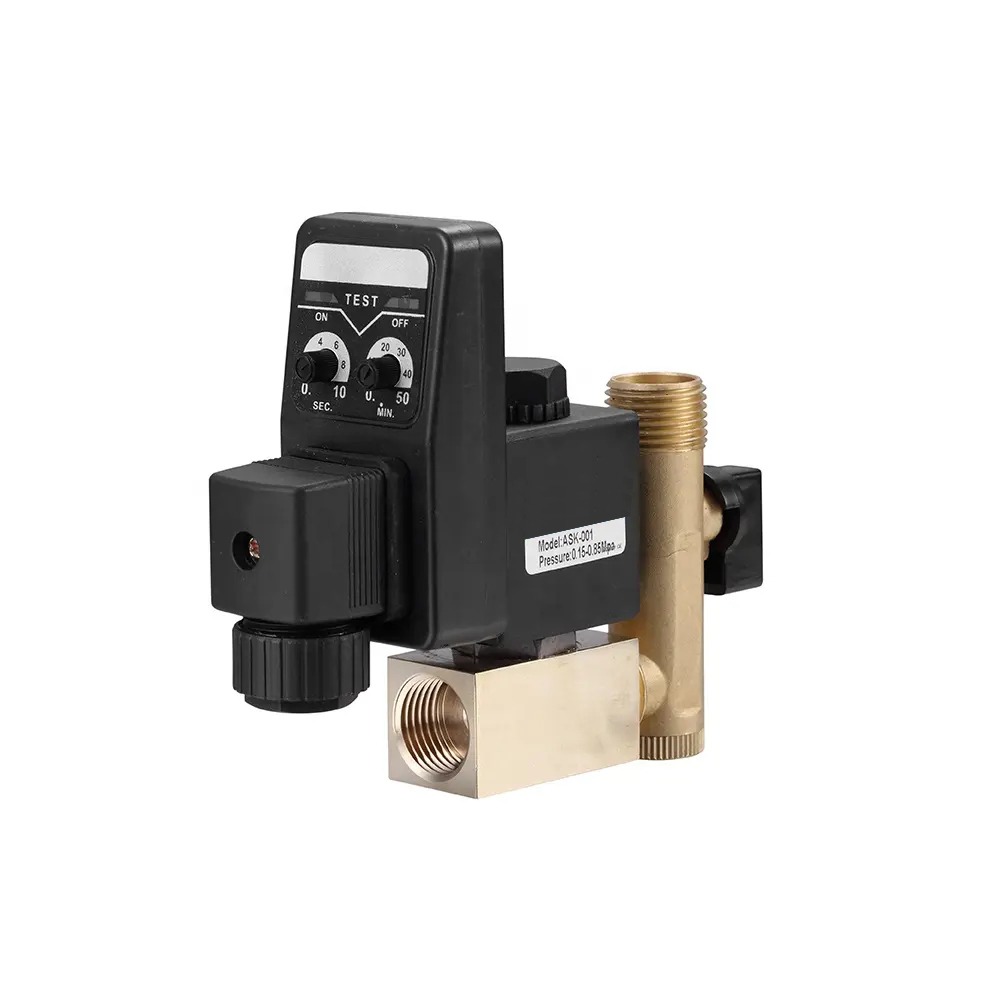

Automatic Electronic Timed Valve Tank Drain Kit
HOME -
PRODUCTS -
Pneumatic Valve -Fluid Solenoid Valve - Automatic Electronic Timed Valve Tank Drain Kit
Timed Electric Auto Drain Valve, Pipe Size 1/2 in NPT, Drain Size 1/2 in, Drain Rate 4.53 gpm, Adjustable Drain Cycle 0.5 min to 45 min, Purge Time 0.5 sec to 10 sec, Voltage 100-120V, Max. Pressure 250 psi, Operating Temp. Range 14 Degrees to 140 Degrees F, Hz 50/60, Amps AC 0.3 A, Enclosure IP65, Body Material Brass, Overall Height 4 in, Overall Width 1 13/16 in, Overall Depth 3 13/64 in, Includes 6 ft Power Cord
Technical data
Working pressure:0-16bar/230psi
Compressed air temperature:0-130
Ambient Temperature:0-60
Timer Set:0.5...10 sec & 0.5...45min
