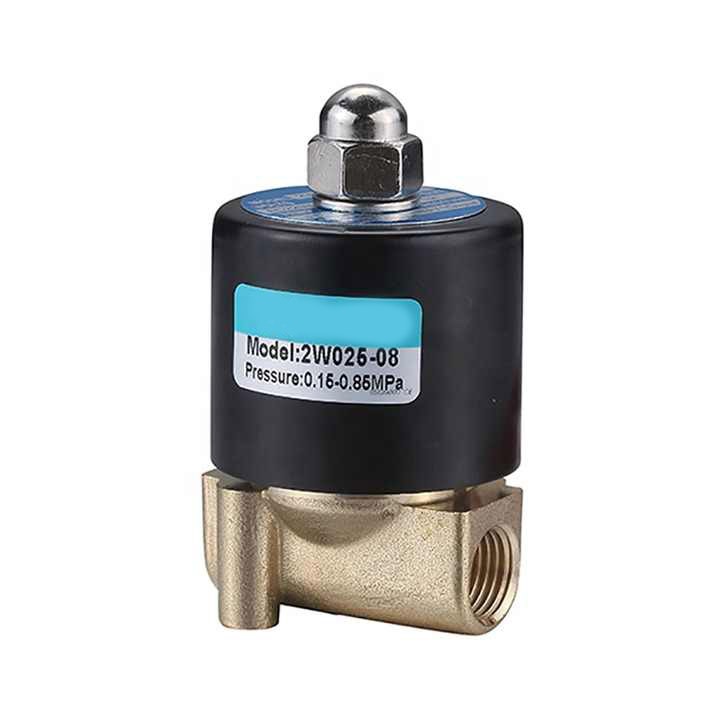

High Pressure JXPC Type Bronze 2/2 Way Directly Operated Valve
HOME -
PRODUCTS -
Pneumatic Valve -Fluid Solenoid Valve - High Pressure JXPC Type Bronze 2/2 Way Directly Operated Valve
Technical data:
Medium:
Neutral gases,liguid,olibelow 20CSTI
Port size: PT/NPT make to order
Media temperature: NBR:10-80
FKM:20-70
EPDM:20-120
Ambient Temperature:5-50
Material
Body: brass
Seal: NBR,FKM or EPDM
2/2 way seat valves normally closed
ip65 class col,water-proof optional
Univeral usage for most of industries
| Model | 2V010-M4 | 2V025-06 | 2V025-08 | 2V130-10 | 2V130-15 | 2V250-20 | 2V250-25 | ||||||
| Working medium | Water,Air,Oil,Gas | ||||||||||||
| Motion Pattern | Direct Drive Type | Guide Type | |||||||||||
| Type | Normally Close Type | ||||||||||||
| Aperture of Flow Rate | 1 | 2.5 | 13 | 25 | |||||||||
| CV Value | 0.1 | 0.23 | 6.2 | 23 | |||||||||
| Port Size | M4×0.7 | G1/8'' | G1/4'' | G3/8'' | G1/2'' | G3/4'' | G1'' | ||||||
| Operation Fluid Viscosity | 20 CST (Below) | ||||||||||||
| Working Pressure | Water,Air,Oil,Gas 0.05~0.7Mpa | ||||||||||||
| Max Pressure Resistance | 1.2 | 1.6 | 1 | ||||||||||
| Operating Temperature | -10~+80℃ | ||||||||||||
| Voltage Range | ±10% | ||||||||||||
| Protect Class | IP65 | ||||||||||||
| Power Consumption | AC:4.5VA DC:3W | ||||||||||||
| Insulation | F CLASS | ||||||||||||
| Material of Body | Aluminum or Brass (Nickel Coated) | Brass | |||||||||||
| Material of Oil Seal | NBR/VITON | NBR/VITON | |||||||||||
| Shortest Excitation Time | 0.05 Second | ||||||||||||
