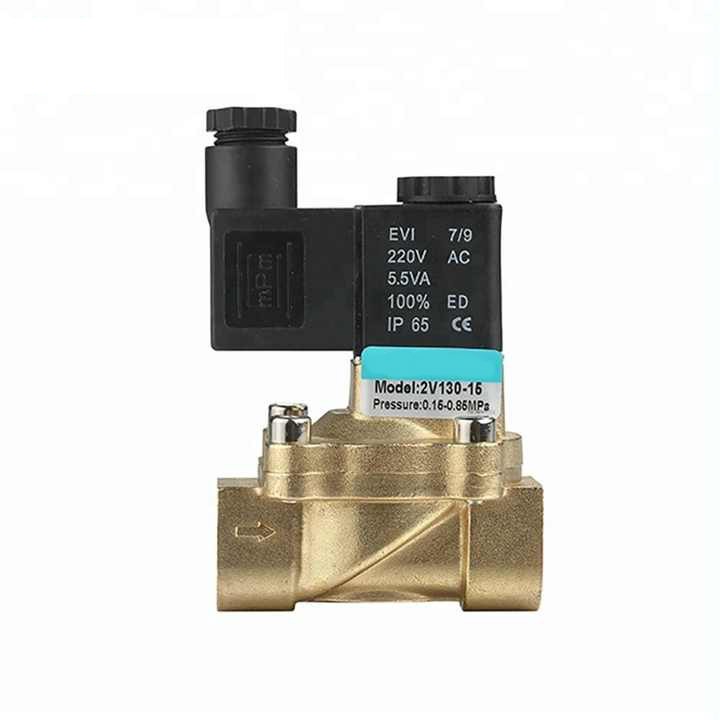

JXPC Type Hot Sale 2/2-Way Pneumatic Directly Operated Valve
HOME -
PRODUCTS -
Pneumatic Valve -Fluid Solenoid Valve - JXPC Type Hot Sale 2/2-Way Pneumatic Directly Operated Valve
Technical data:
Medium
neutral gases,liquid,oilbelow 20
Media temperature: NBR: 10-80
FKM:20-170
Ambient Temperature: 5-50
Material:
body: brass
seal: NBR or FKM,EPDM
2/2 way seat valves normally open
IP65 class coil,water-proof optional
| Specifications | ||||||
| Model | 2W025-06 | 2W025-08 | 2W040-10 | 2WH012-06 | 2WH012-08 | 2WH020-10 |
| Working medium | Air ,Water,Oil,Gas | |||||
| Operation | Direct Acting | |||||
| Acting Type | Normal Close | |||||
| mm/orifice size | 2.5 | 4 | 1.2 | 2 | ||
| Cv Value | 0.23 | 0.6 | 0.05 | 0.15 | ||
| Port Size | G1/8'' | G1/4'' | G3/8'' | G1/8'' | G1/4'' | G3/8'' |
| Operation Fluid Viscosity | 20 CS Below | |||||
| Operating Pressure | Air ,Water,Oil,Gas:0~0.7Mpa | Air ,Water,Oil,Gas:0~2.0Mpa | ||||
| Max.Pressure Resistance | 1.0Mpa | 3.5Mpa | ||||
| Operating Temperature | NBR for -5~80℃ and VITON for -5~80℃ | |||||
| Voltage Range | ±10% | |||||
| Material of boby | Stainles Steel or Brass | |||||
| Material of Oil Seal | NBR,EPDM or VITON | |||||
