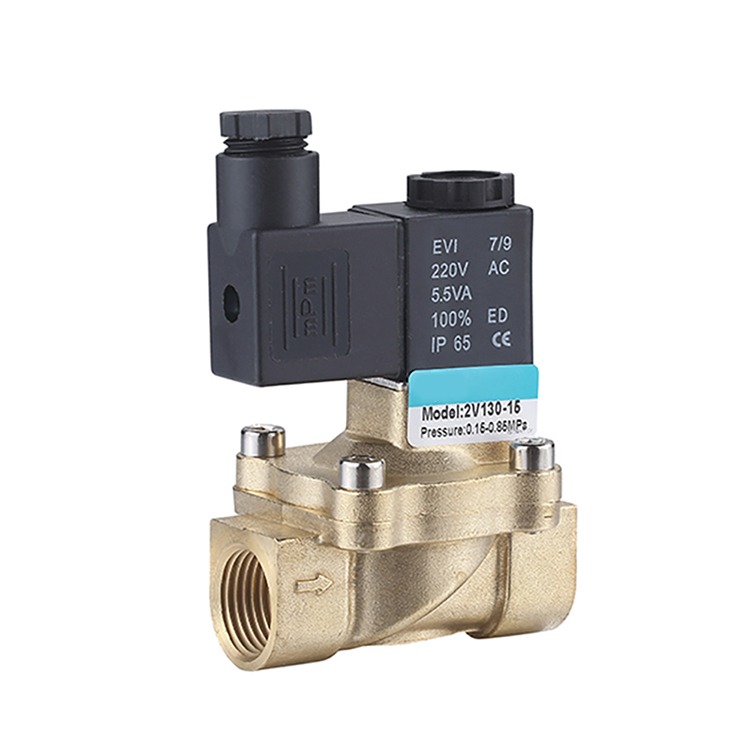

JXPC Type 2 Way Brass Water Pneumatic Solenoid Valve
HOME -
PRODUCTS -
Pneumatic Valve -Fluid Solenoid Valve - JXPC Type 2 Way Brass Water Pneumatic Solenoid Valve
· 2 Way Solenoid Valve, 1/8", 1/4", 1/2" Port Size , Brass Body
· High Quality Normally Closed electric solenoid valve, for water, air or oil
· Working temperature range: -5~80 °C
· It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. and air controls ( lab, factory, etc.)
· We have solenoids available in AC/DC and various size NPT threads as welll
| Model | PU220-01 | PU220-02 | PU220-03 | PU220-03 | PU220-04 | PU220-06 | PU220-08 |
| Port Size | 1/8" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 1" |
| Fluid | Compressed Air,Water,Light Oil (Below 50CST) | ||||||
| Operation | Direct Acting | ||||||
| Material | Brass | ||||||
| mm/orifice size | 1.5 | 2.3 | 8 | 13 | 13 | 20 | 25 |
| Ectional Area | 1.8 | 3.3 | 20.65 | 76 | 76 | 162 | 220 |
| Cv Value | 0.10 | 0.18 | 1.00 | 4.00 | 4.00 | 8.60 | 11.0 |
| Operating pressure(kg/cm2 | AC0~8.5 DC0~7.0 | AC0~8.5 DC0~7.0 | AC0~10 DC0~7.0 | AC0~8.5 DC0~7.0 | AC0~8.5 DC0~6.0 | AC0~8.5 DC0~6.0 | AC0~7.0 DC0~5.0 |
| Diaphragm Type | NBR OR VITON,EPDM | ||||||
| Temperature range | NBR for -5~80℃ and EPDM,VITON for -5~150℃ | ||||||
| Ambient Temperature | -20~60℃ | ||||||
| Power consumption | 22VA | ||||||
| Duty Cycle | 100% | ||||||
| Installation | Horizontal or Alant | ||||||
| Coils Type | DIN Type | ||||||
| Voltage range | ±10% | ||||||
| Protection Degree | IP65 | ||||||
| Insulation | F | ||||||
| Standard voltage | Standard voltage:DC24V,AC220V,AC110V,50/60HZ;Special:DC12V,DC48V,AC24V,AC380V | ||||||
