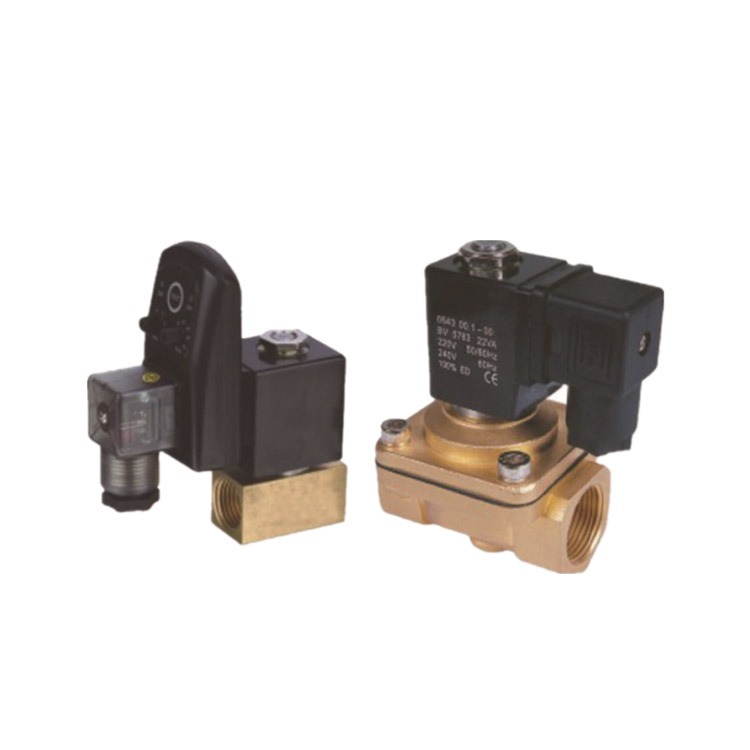

High Pressure 220v Water Brass Solenoid 2 Way Valve
HOME -
PRODUCTS -
Pneumatic Valve -Fluid Solenoid Valve - High Pressure 220v Water Brass Solenoid 2 Way Valve
2 Way Solenoid Valve, G1/8",G1/4 ", G3/8 ",G1/2 ",G3/4 ",G1" Port Size , Stainless Steel or Brass
High Quality Normally Closed electric solenoid valve, for Air,Water,Oil,Gas
Working temperature range: -20~60°C
It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. and air controls ( lab, factory, etc.)
We have solenoids available in AC/DC and various size NPT threads as welll
| Model | PU220-01 | PU220-02 | PU220-03 | PU220-03 | PU220-04 | PU220-06 | PU220-08 |
| Port Size | 1/8'' | 1/4'' | 3/8'' | 3/8'' | 1/2'' | 3/4'' | 1'' |
| Fluid | Compressed Air, Water Light (Below 50CST) | ||||||
| Material | Brass | ||||||
| Orifice Size (mm) | 1.5 | 2.3 | 8 | 13 | 13 | 20 | 25 |
| Sectional Area (mm) | 1.8 | 3.3 | 20.65 | 76 | 76 | 162 | 220 |
| CV Value | 0.10 | 0.18 | 1.00 | 4.00 | 4.00 | 8.60 | 11.0 |
| Operating Pressure (kg/cm2) |
AC 0~8.5 DC 0~7.0 | AC 0~8.5 DC 0~7.0 | AC 0~10 DC 0~7.0 | AC 0~8.5 DC 0~7.0 | AC 0~8.5 DC 0~6.0 | AC 0~8.5 DC 0~6.0 | AC 0~7.0 DC 0~5.0 |
| Max. Pressure | |||||||
| Diaphragm Type | NBR OR VITON, EPDM | ||||||
| Temperature Range | NBR for -5~80°C And EPDM, VITON for -5~150°C | ||||||
| Ambient Temperature | -20°C~60°C | ||||||
| Power Consumption | 22VA | ||||||
| Duty Cycle | 100% | ||||||
| Installation | Horizontal or Slant | ||||||
| Coils Type | DIN Type | ||||||
| Voltage Tolerance | ±10% | ||||||
| Protection Degree | IP65 | ||||||
| Insulation | F | ||||||
| Standard Voltage | Standard: DC24, AC220V, AC110V, 50/60HZ Special: DC12V, DC48V, AC24V, AC380V | ||||||
