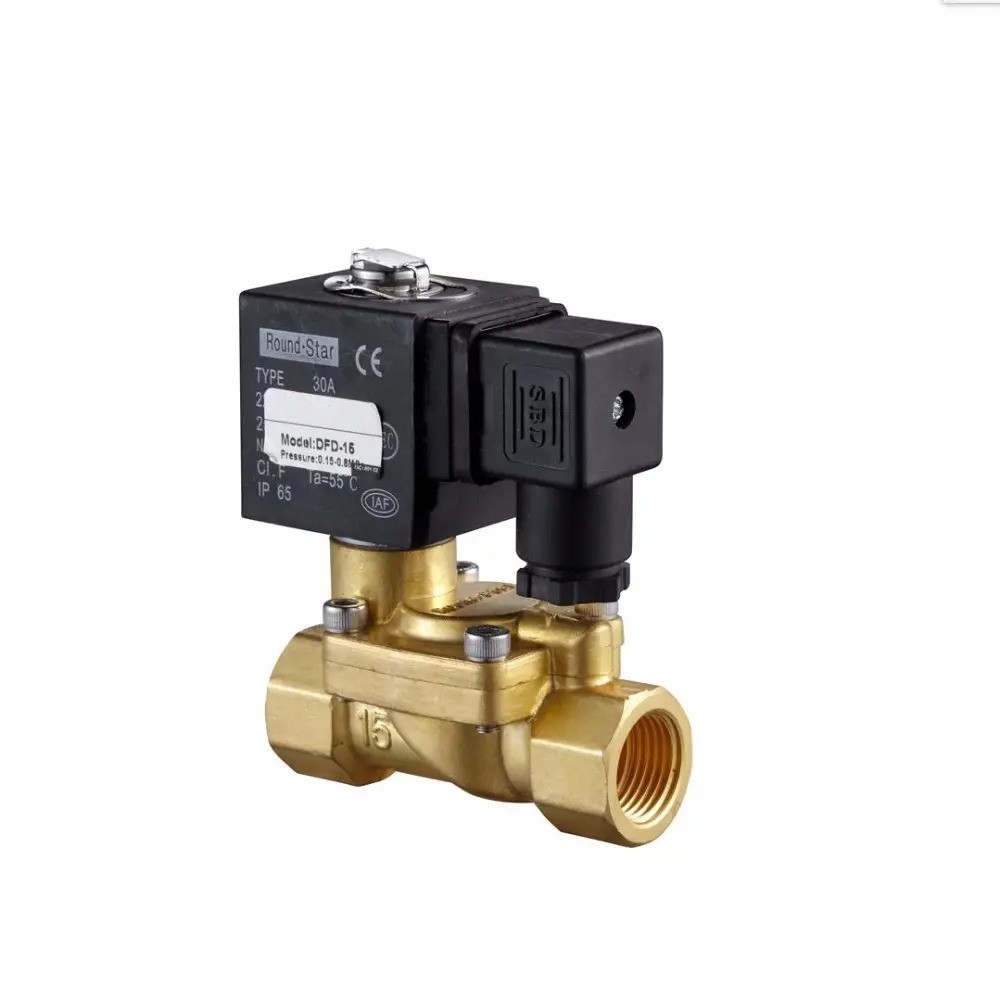

JFD Series High Quality Water Solenoid Valve
HOME -
PRODUCTS -
Pneumatic Valve -Fluid Solenoid Valve - JFD Series High Quality Water Solenoid Valve

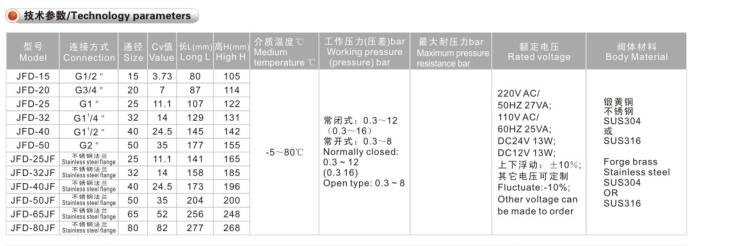

Model | JFD-10 | JFD-15 | JFD-20 | JFD-25 | JFD-32 | JFD-40 | JFD-50 |
Orifice Size | 15 | 20 | 25 | 32 | 40 | 50 | |
Port Size | G3/8 | G1/2 | G3/4 | G1 | G1 1/4 | G1 1/2 | G 2" |
CV Value | 2.2 | 3.73 | 7 | 11.1 | 14 | 24.5 | 35 |
L(MM) | 48 | 80 | 87 | 107 | 120 | 145 | 177 |
H(MM) | 83 | 105 | 114 | 122 | 131 | 142 | 155 |
H1(MM) | 79 | 93.5 | 98 | 100 | 107 | 116 | 122.5 |
Working Pressure | N/C:0.3-12(0.3-16) N/O:0.3-8 | ||||||
Working Temperature | 5-80 | ||||||
