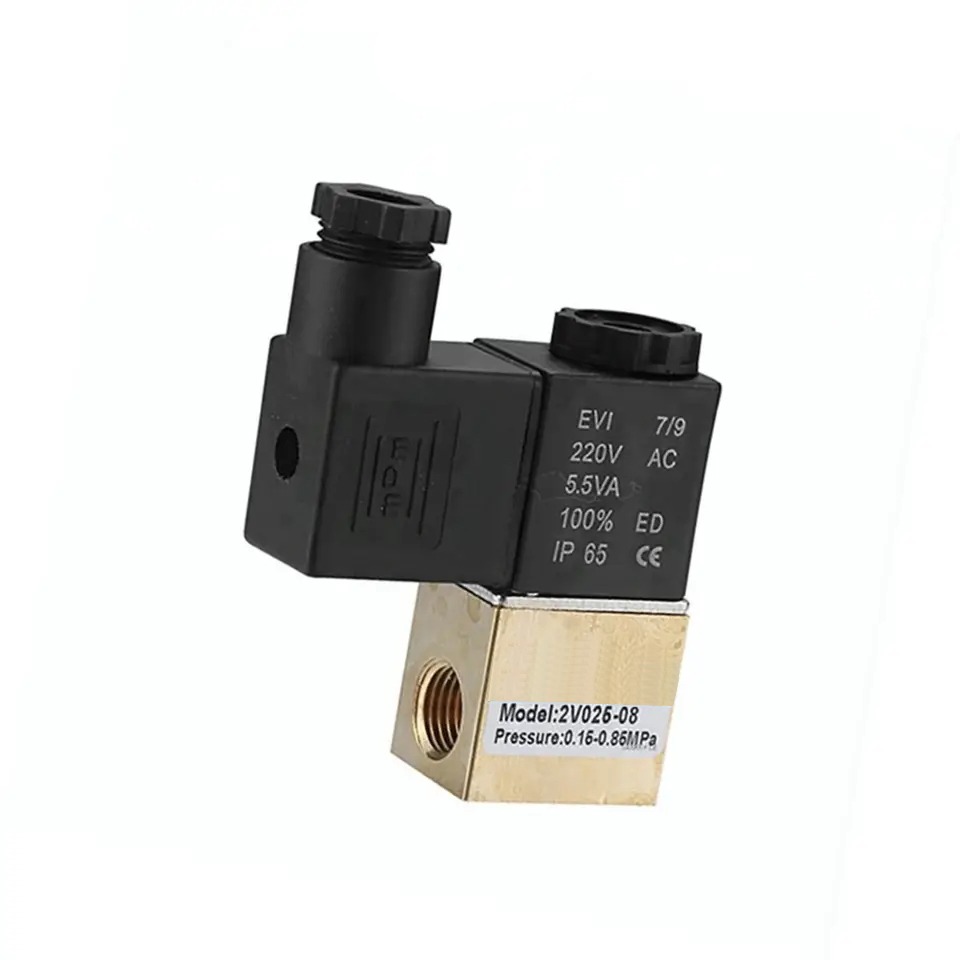

0.23CV Value High Pressure 2.5mm Solenoid Valve
HOME -
PRODUCTS -
Pneumatic Valve -Fluid Solenoid Valve - 0.23CV Value High Pressure 2.5mm Solenoid Valve
2V Series Two-Position Two-Way Solenoid Valve, M4x0.7, 3/8", 1/8", 3/4", 1/4", 1/2", 1" Port Size
High Quality Normally Closed electric solenoid valve, for water, air or oil
Working temperature range: -10~80 °C
It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. and air controls ( lab, factory, etc.)
We have solenoids available in AC/DC and various size NPT threads as welll
| 2V Series Two-position Two-way Solenoid Valve | ||||||||||||
| Model | 2V010-M4 | 2V025-06 | 2V025-08 | 2V130-10 | 2V130-15 | 2V250-20 | 2V250-25 | |||||
| Working Medium | Air,Water,Oil | |||||||||||
| Motion Pattern | Direct Drive Type | Guide Type | ||||||||||
| Type | Normal Close Type | |||||||||||
| Aperture of Flow Rate(mm) | 1 | 2.5 | 13 | 25 | ||||||||
| CV Value | 0.1 | 0.23 | 6.2 | 23 | ||||||||
| Port Size | M4×0.7 | G1/8” | G1/4” | G3/8” | G1/2” | G3/4” | G1” | |||||
| Operation Fluid Viscosity | 20 CST(Below) | |||||||||||
| MPa Working Pressure | Air,Water,Oil,0.05~0.07MPa | |||||||||||
| MPa Max Pressure Resistance | 1.2 | 1.6 | 1 | |||||||||
| Operating Temperature Range | 1.6 | |||||||||||
| Voltage Range | -10~+80°C | |||||||||||
| Protect Class | ±10% | |||||||||||
| Power Consumption | IP65 | |||||||||||
| Insulation | AC4.5VA DC:3W | |||||||||||
| Material of Body | Aluminum or Brass(Nickel coated) | Brass | ||||||||||
| Material of Oil Seal | NBR or VITON | NBR or VITON | ||||||||||
| Shortest Excitation Time | 0.05 Second | |||||||||||
