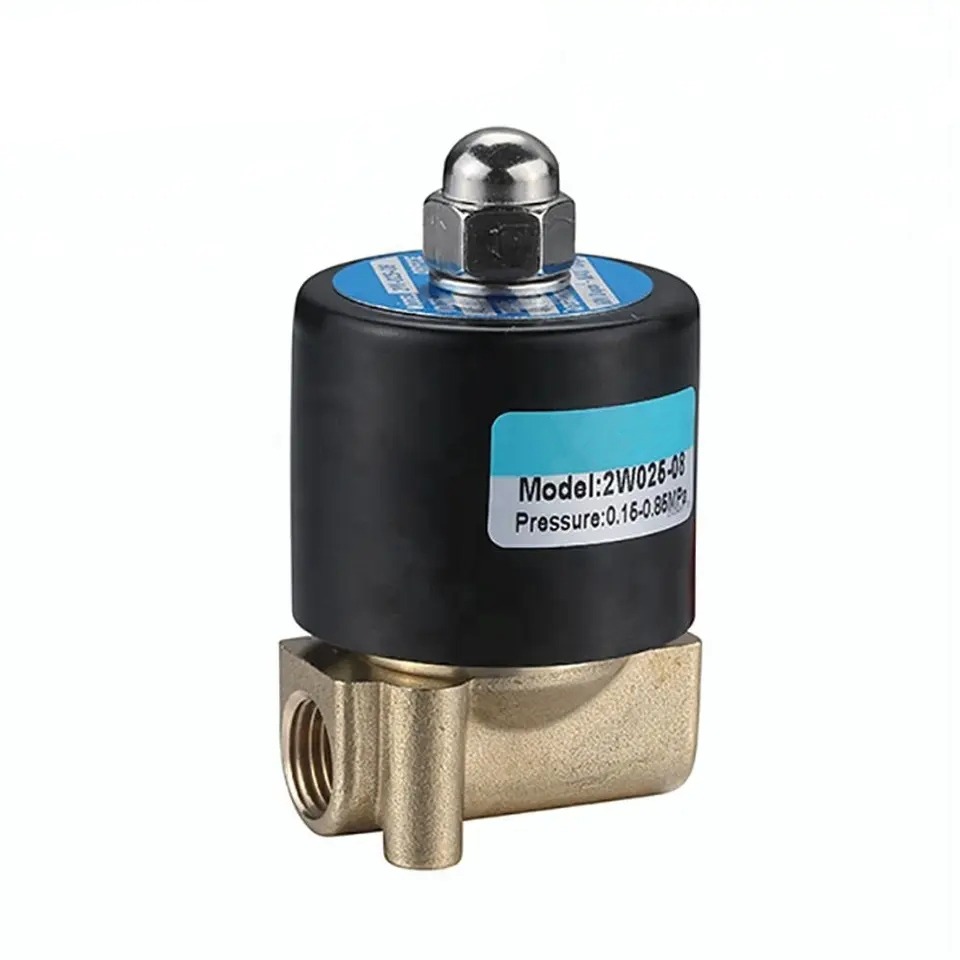

2 Way Solenoid Valve, G1/8",G1/4 ", G3/8" Port Size , Stainless Steel or Brass
High Quality Normally Closed electric solenoid valve, for Air,Water,Oil,Gas
Working temperature range: -5~80°C
It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. and air controls ( lab, factory, etc.)
We have solenoids available in AC/DC and various size NPT threads as welll
2W Series 2/2 way Direct Acting Solenoid Valve | ||||||
Model | 2W025-06 | 2W025-08 | 2W040-10 | 2WH012-06 | 2WH012-08 | 2WH020-10 |
Medium | Air,Water,Oil,Gas | |||||
Operation | Direct Acting | |||||
Type | Normal Close | |||||
Orifice Size(mm) | 2.5 | 4 | 1.2 | 2 | ||
CV Value | 0.23 | 0.6 | 0.05 | 0.15 | ||
Port Size | G1/8" | G1/4" | G3/8" | G1/8" | G1/4" | G3/8" |
Operation Fluid Viscosity | Below 23 CST | |||||
Operating Pressure | Air,Water,Oil,Gas:0~0.7Mpa | Air,Water,Oil,Gas:0~0.2Mpa | ||||
Max Pressure Resistance | 1.0MPa | 3.5MPa | ||||
Operating Temperature | NBR for -5~80°C and VITON for -5~80°C | |||||
Voltage Range | ±10% | |||||
Material of Body | Stainless Steel or Brass | |||||
Material of Oil Seal | NBR,EPDM or VITON | |||||
