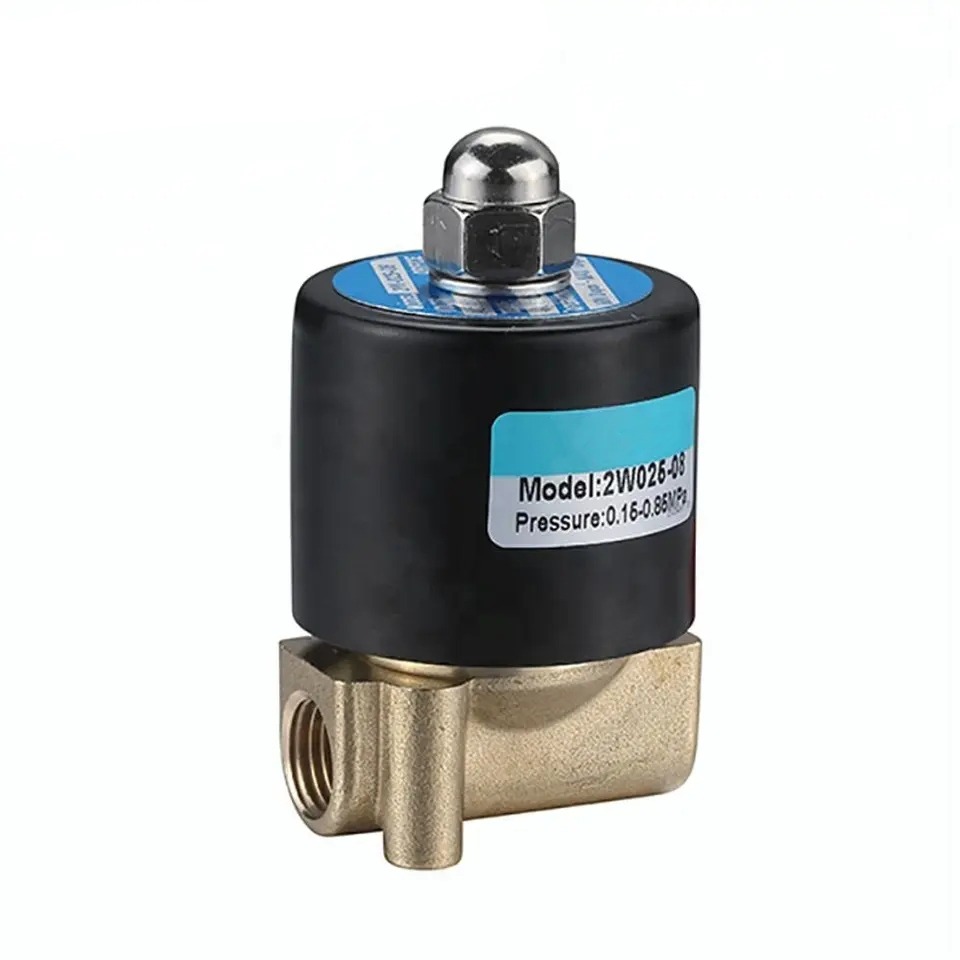

2W025-08 Series Professional Pneumatic Solenoid Actuator Valve Manufacturer

2 Way Solenoid Valve, G1/8",G1/4 ", G3/8" Port Size , Stainless Steel or Brass
High Quality Normally Closed electric solenoid valve, for Air,Water,Oil,Gas
Working temperature range: -5~80°C
It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. and air controls ( lab, factory, etc.)
We have solenoids available in AC/DC and various size NPT threads as welll

2W Series 2/2 way Direct Acting Solenoid Valve
Model	2W025-06	2W025-08	2W040-10	2WH012-06	2WH012-08	2WH020-10
Medium	Air,Water,Oil,Gas
Operation	Direct Acting
Type	Normal Close
Orifice Size(mm)	2.5		4	1.2		2
CV Value	0.23		0.6	0.05		0.15
Port Size	G1/8"	G1/4"	G3/8"	G1/8"	G1/4"	G3/8"
Operation Fluid Viscosity	Below 23 CST
Operating Pressure	Air,Water,Oil,Gas:0~0.7Mpa			Air,Water,Oil,Gas:0~0.2Mpa
Max Pressure Resistance	1.0MPa			3.5MPa
Operating Temperature	NBR for -5~80°C and VITON for -5~80°C
Voltage Range	±10%
Material of Body	Stainless Steel or Brass
Material of Oil Seal	NBR,EPDM or VITON
