Properties：Sintered Woven Wire Mesh

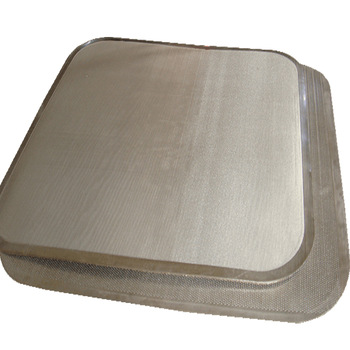

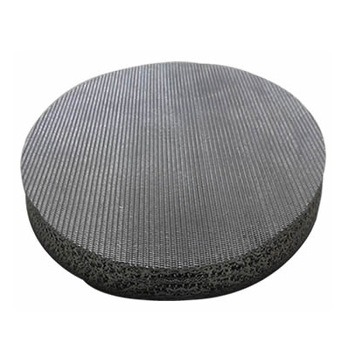

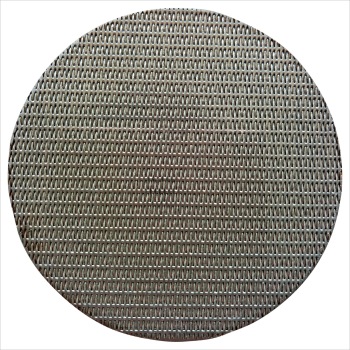

tainless Steel Sintered Multi-layer Sintered wire Mesh Filter Product Introduction

multi-layer sintered woven mesh is composed of multi-layer stainless steel wire mesh(maybe 3-layer,4-layer,7-layer,8-layer,10-layer, etc.), which is special canlendering and sintering in vacuum oven, to create a new filter material with high strength and rigidity. Its interlaced mesh forms a uniform and ideal filtration structure. It is widely used in many industries such as the petrochemical,nuclear power, synthetic fiber, film, food, pharmaceutical, aerospace and environment protection industry.

Stainless Steel Sintered Multi-layer Sintered wire Mesh Filter Application:

1.Hydraulic oil & lubricant oil filtration in machinary industry;

2.All kinds of polymer filtration in chemical fiber film industry, filtration in high temperature and for corrosive liquid,material filtering, cleaning and drying in pharmacuetical industry;

3.Gas distribution in powder industry,fluidization in steel industry;

4.Buzzer for explosion proof electric apparatus;

Stainless Steel Sintered Multi-layer Sintered wire Mesh Filter Specifications:

1. Standard matetial:SUS316L, SUS304

2. Standard size: 1000mm×500mm 1200mm×600mm 1000mm×1000mm

3. Filtration rate: 2-300um;

4. Special sizes are available on request.
