316L High Temperature Resistance Pleated Stainless Steel Micron Melt Filter Element For Liquid Filter
316L High Temperature Resistance Pleated Stainless Steel Micron Melt Filter Element For Liquid Filter
Product Introduction:

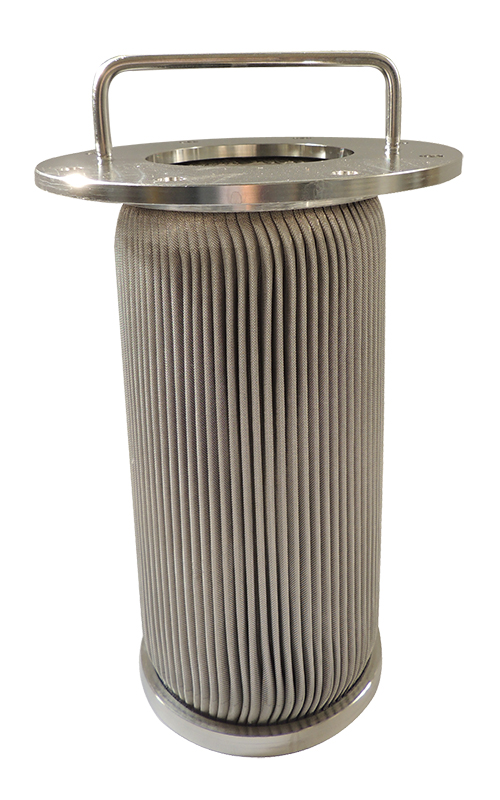

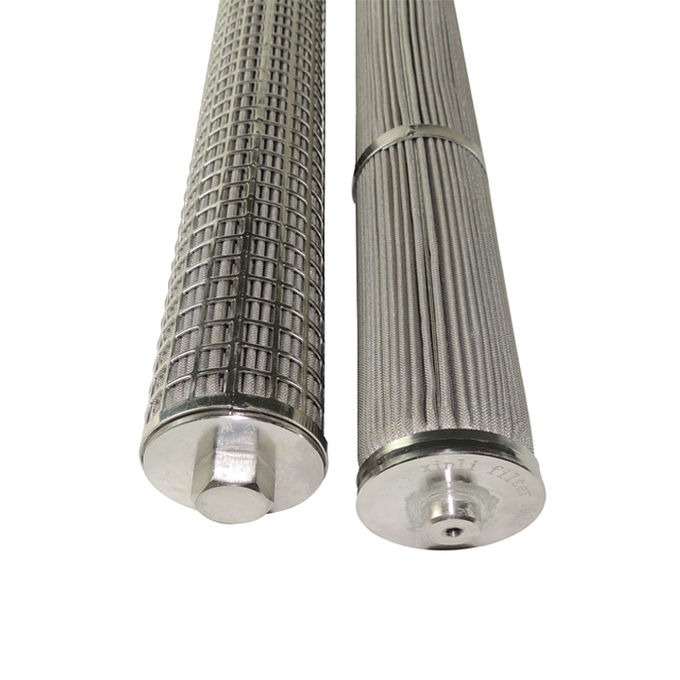

Our pleated filter cartridges are made of stainless steel fiber mat and stainless steel weaving wire mesh. Stainless steel sintered fiber web is a multi-pore filter media. The filter elements gives you the advantage of high porosity, large filter area and high dirt holding capacity, and can also be clean and reused by chemical cleaning or ultrasonic cleaning methods.

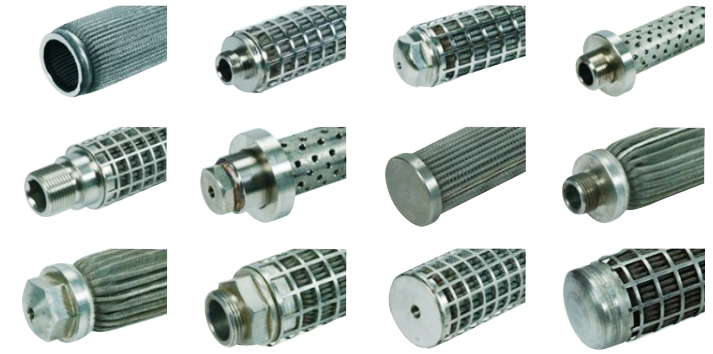

Filter Elements Adaptors:
1. Standard Adaptors (222,220,226)
2. Fast Interface Connector
3. Threaded Connector
4. Flange
5. Tire Rod
6. Other Special Adaptors
Product Features:
1. High dirt-holding capacity (longer lifetime)
2. High temperature resistance
3. High differential pressure, with stand capacity
4. Strong corrosion resistant
5. Back flushing
6. Excellent mechanical strength
7. No media migration
8. Customized Sizes available

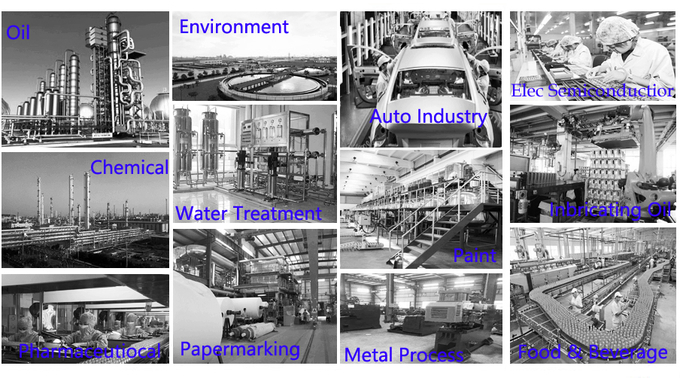

Application:
Polymer ,water treatment, oil, pharmaceutical ,food and beverage, chemical, synthetic filtration ,and medium filtration such as high temperature.
| Material | Stainless steel 304 or 316L |
| Micron Rate | 1-300um |
| OD | Standard 60mm / 65mm or customized |
| Connectors | Standard 220/222/226, Thread, Flange, Fast interface |
| Length | Standard 10”, 20”, 30”, 40” or customized |
| Application | Water, Oil, Polymer, Chemical, Food, High temperature gas filtration, and so on |
Technical Prameters:
Product Type | Material | Micron (um) | Outer Diameter (mm) | Length | Connector | O-Ring/Gasket | Filter Media |
| Pleated | SS304 | 1,2,5,10,15,20, 25,30,40,50,Etc | 30 | 5’’ | 1’’ BSP Threaded | Silicore | Stainless Steel Wire Mesh |
| SS316L | 60 | 10’’ | NIL-Cut Ends | Buna-N | Mesh + Sintered Fiber Felt | ||
| Other | 65 | 20’’ | DOE | Viton | |||
| 80 | 30’’ | 222/Seal | Teflon | ||||
| 85 | 40’’ | 226/Seal | Ethylene Propylene | ||||
The above options are freely combined, For Example: Pleated 316l;Micron:5;Out Dia:60;Length:20’’;Connector:222;Gasket:Silicore;Fiter Media:Stainless steel wire mesh Notice:It also can be customized according to your requirerment | |||||||
