Properties:

Specifications :

Standard Size: 1000mm×500mm/ 1200mm×600mm/ 1000mm×1000mm

Max Size: 1480mm×1000mm

Standard Material: SUS316L, SUS304

The specific size could be made according to customer's requirement.

Product Introduction :

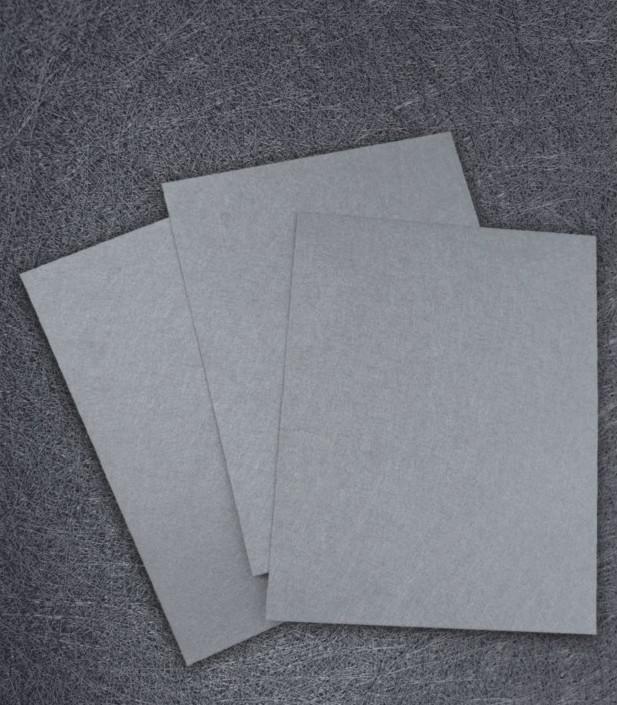

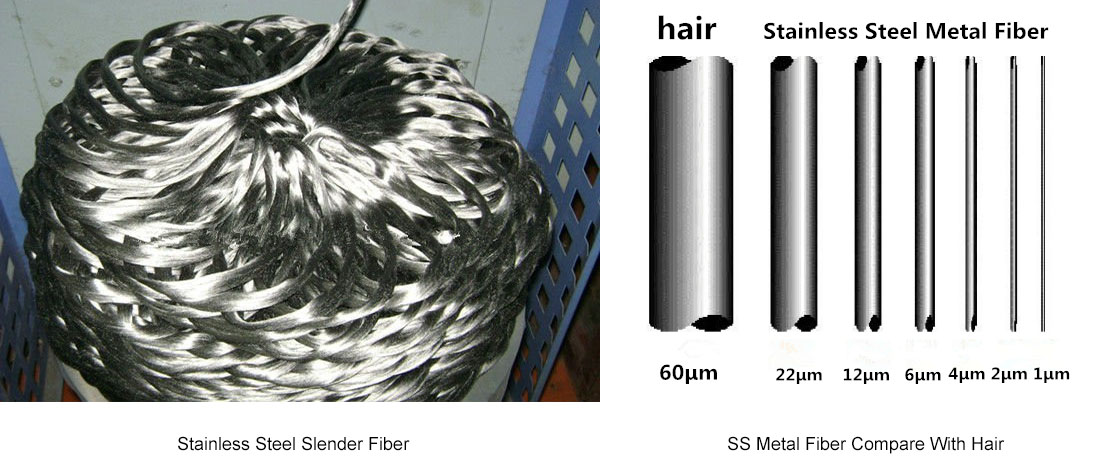

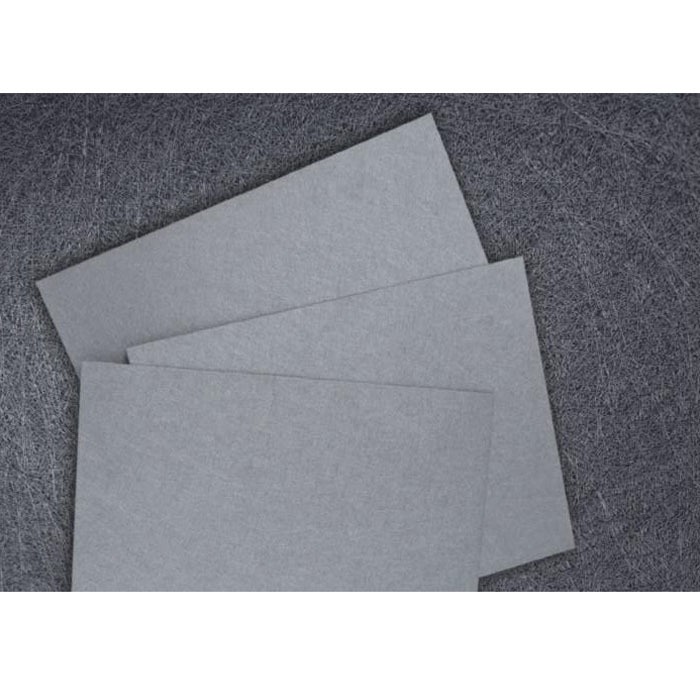

Stainless Steel Sintered Metal Fiber Felt is made of extremely fine steel fiber (micron grade) by sintering in high temperature after special non-woven matching and laying.

Material:

SUS 316L, SUS 304 etc.

Thickness:

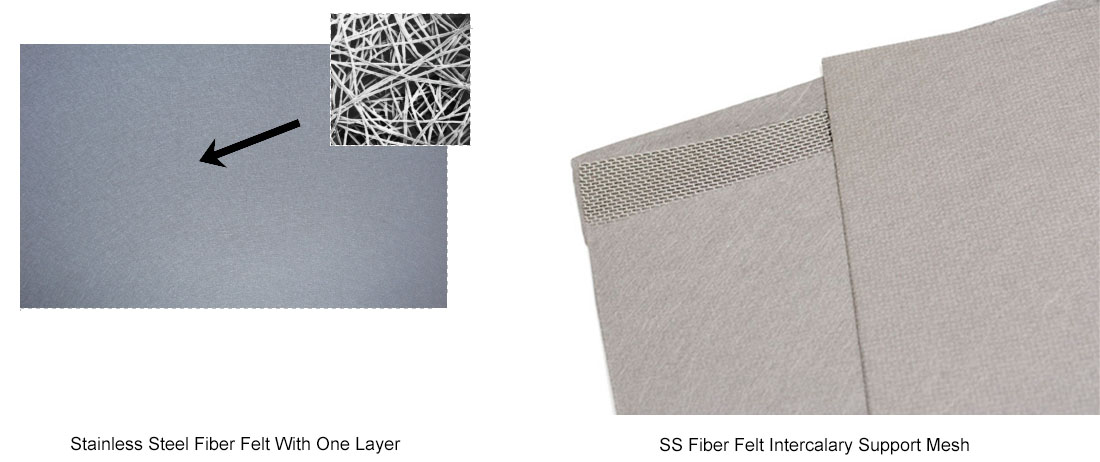

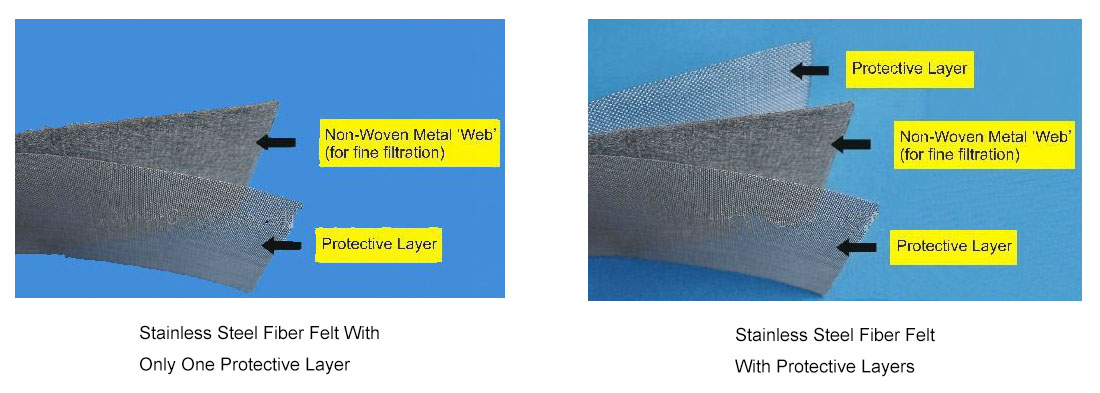

0.45mm-0.55mm, 1mm with protected mesh. And other thickness could be produced by customers’ requirement.

Size:

Standard Size:

1000mm*1000mm,1000mm*1200mm,1180mm*1500mm

Max Size:

1480mm*1200mm or 1180mm*1500mm

Other size could be produced by customers’ requirement.

Category：

Product Character :

1.High dirt holding capacity, high filtering accuracy, long replacement period;

2.High porosity ,excellent permeability,low pressure drop and large flow.

3.Corrosion and high temperature resistance of acid, alkali and organic solvent,pharmaceutical etc. Resistance , can be used under 600℃ for long time.

4.Easy to be processed and welded.

5.Special specifications are on request.

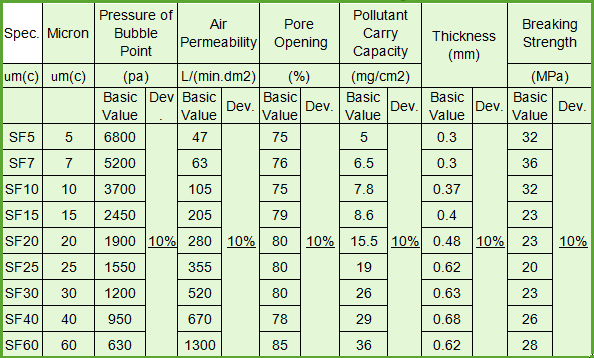

Technical Date:

Application For Sintered Metal Fiber Felt

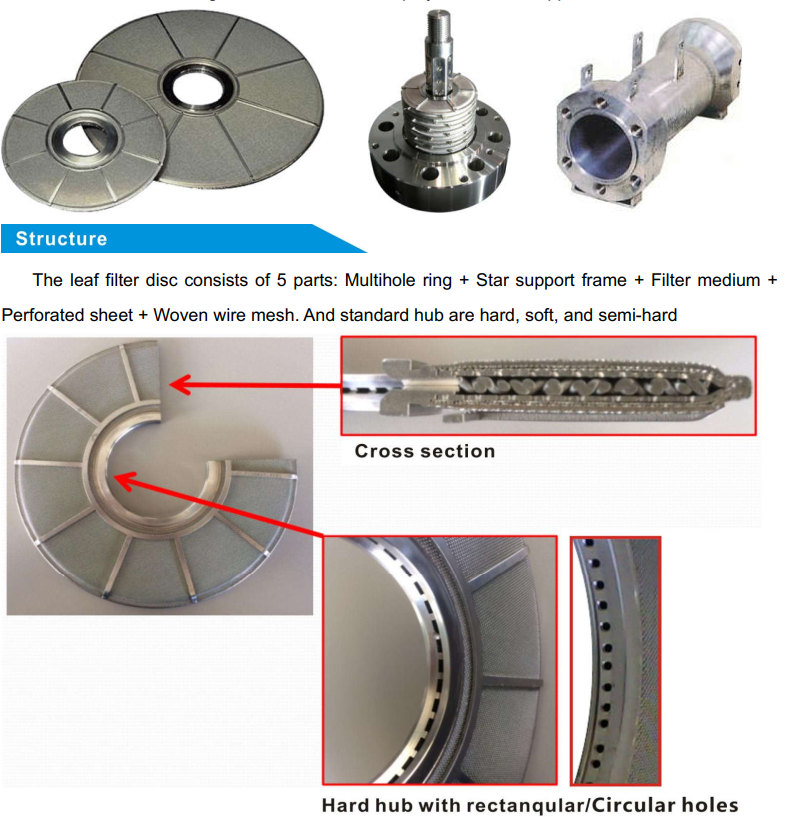

Medium of Leaf filter disc and Gasket

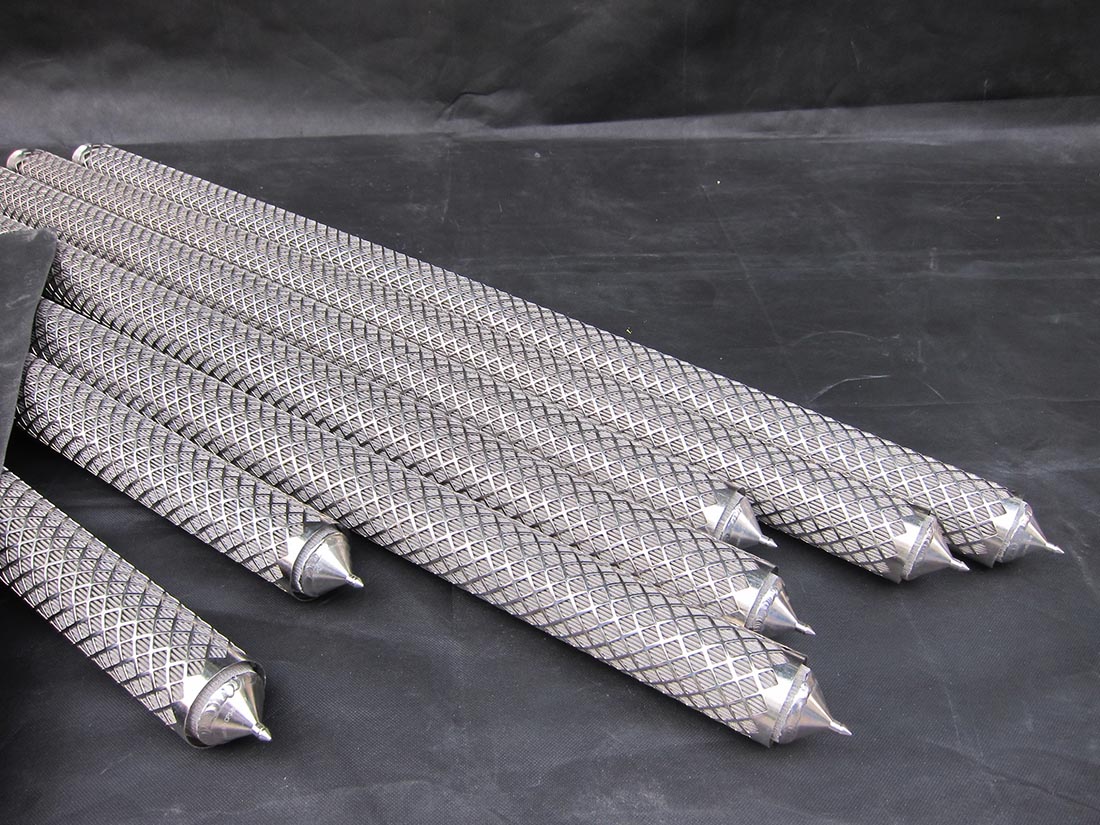

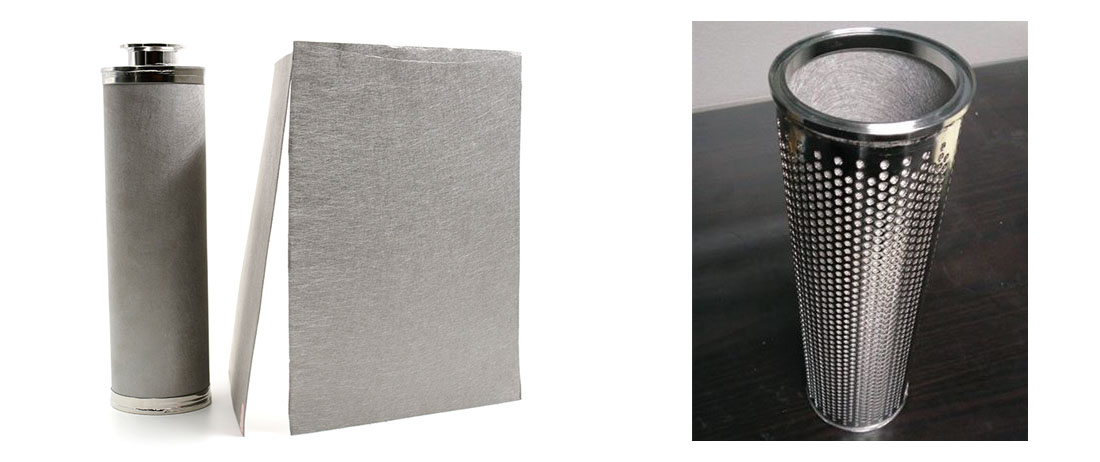

Cylindercal Filter Element

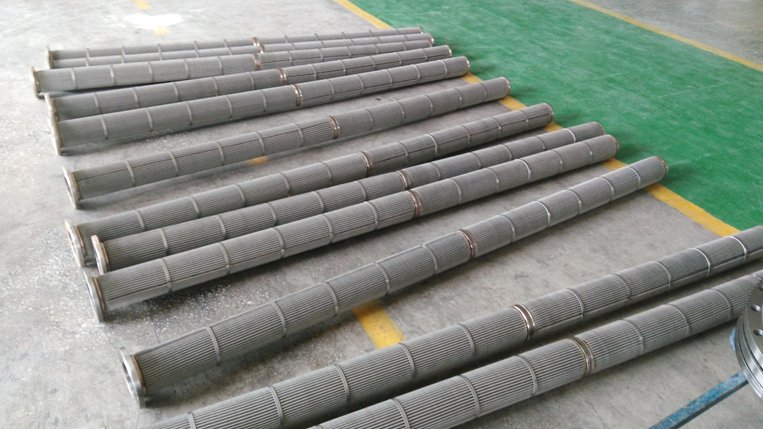

Pleated Filter Element

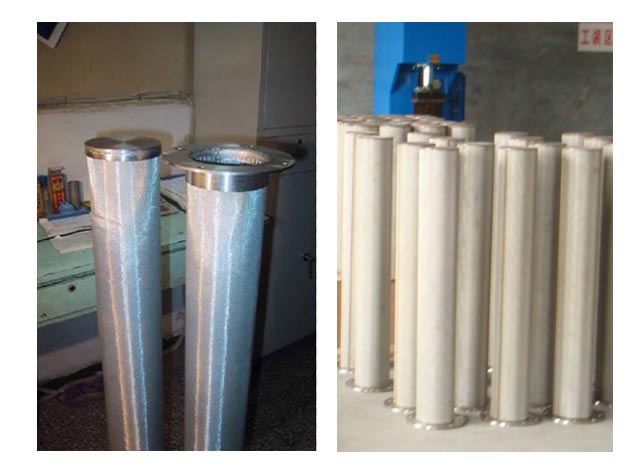

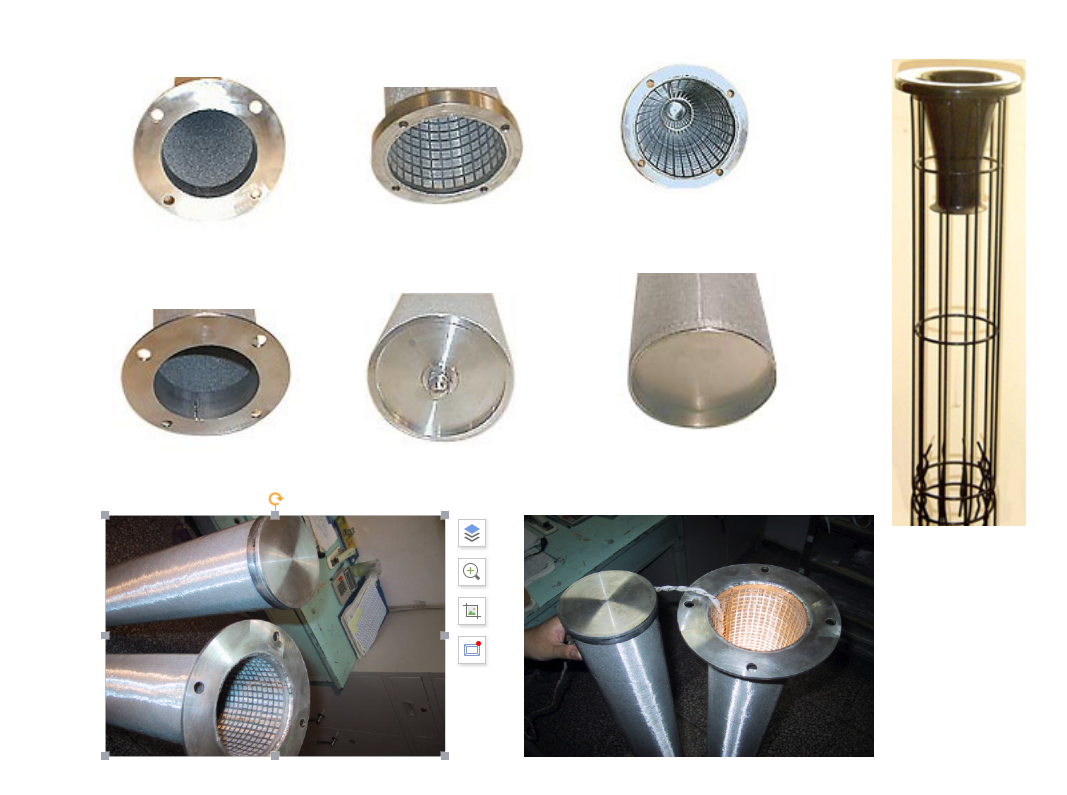

High Temperature Gas Filter Bag

Manganese Powder Filter Cartridge Instead Of Filter Bag

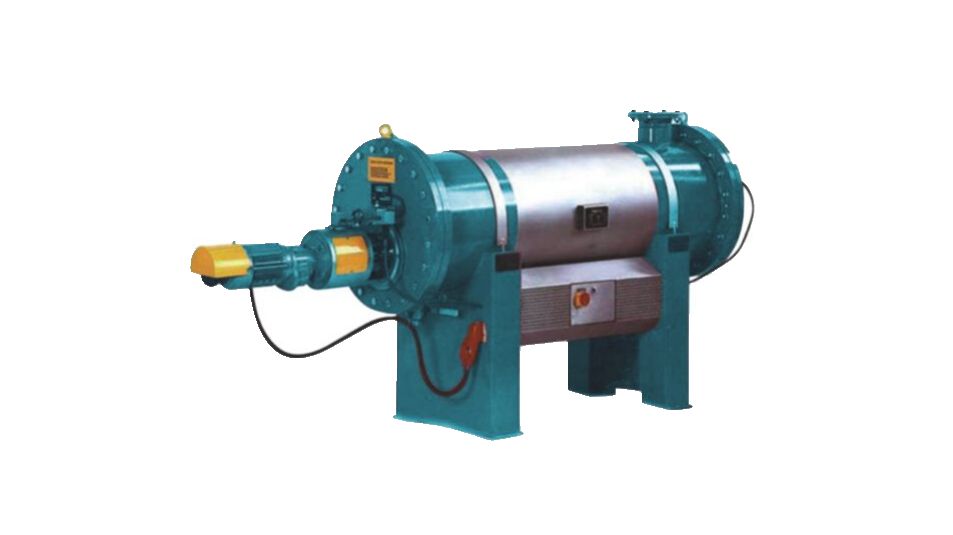

 KKF Automatic Backwashing Filtration
