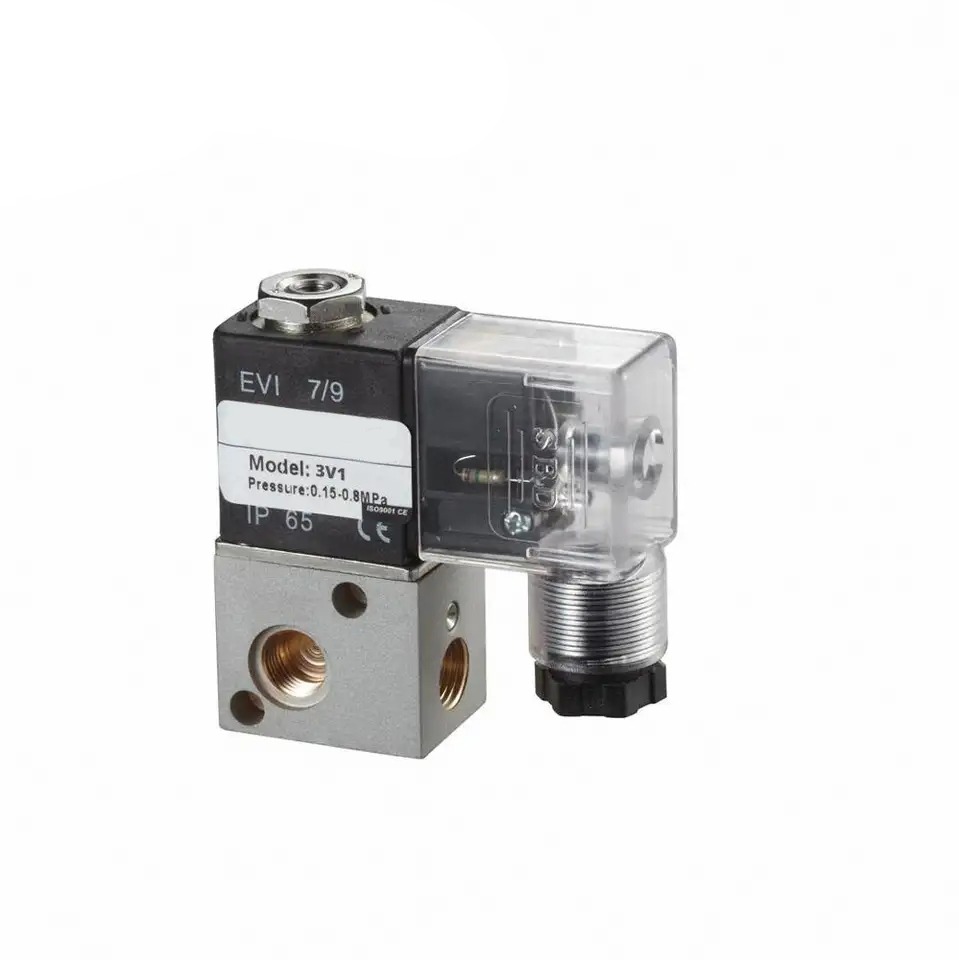

Small Valve Mini 12V Solenoid Valve 3 Way Solenoid Valve
HOME -
PRODUCTS -
Pneumatic Valve -Directional Valve - Small Valve Mini 12V Solenoid Valve 3 Way Solenoid Valve
Product Name :Pneumatic Solenoid Valve
Model : 3V1
Working Temperature Range: 5~60°C
It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. and air controls ( lab, factory, etc.)
We have solenoids available in AC/DC and various size NPT threads as welll
| Model | 3V1-M5 | 3V1-06(B/A) |
| Working Medium | 40 Micron Filtered Air | |
| Motion Pattern | Direct Drive Type | |
| Port Size | M5 | 1/8"(Without thread or /G1/8") |
| Ambient Temperature | -10~+10℃ | |
| Gas Temperature | 5~60℃ | |
| Air Outlet Diameter | 1.0mm | |
| Lubrication | No Necessary | |
| Working-pressure | 0~0.8Mpa | |
| Max.Pressure Resisance | 1.2Mpa | |
| Power Consumption | AC:5.5VA DC:4.8W | |
| Protection Class | IP 65 | |
| Wiring Form | Lead Wire Or Connector Type | |
| Material of body | Aluminum Alloy | |
| Insulation | 10 Cycles /Sec | |
| Voltage Range | F Class | |
| ShortestActivate Time | ±10% | |
| Flow Aperture | 0.05 Second | |
