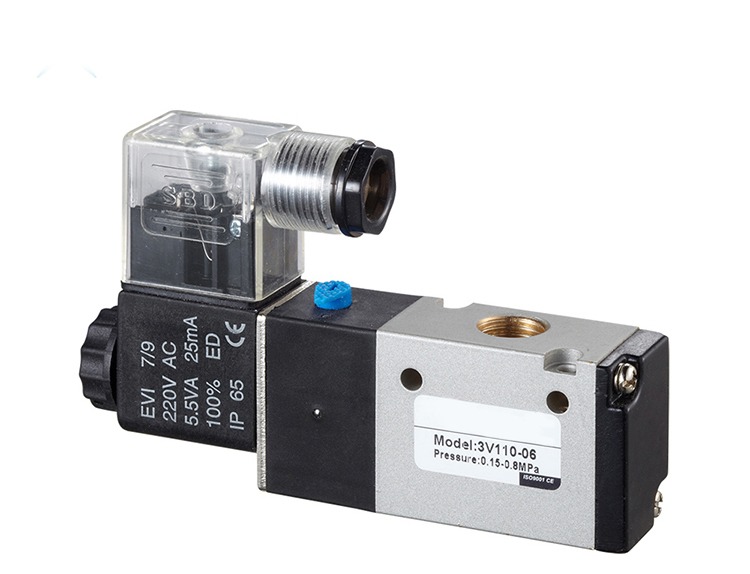

JXPC Standard Pneumatic Solenoid Valve Airtac Solenoid Valve 24v
HOME -
PRODUCTS -
Pneumatic Valve -Directional Valve - JXPC Standard Pneumatic Solenoid Valve Airtac Solenoid Valve 24v
Product Name :Pneumatic Solenoid Valve
Model : 3V110-06
Type : Two-position Three-way
Power Consumption:12V 24V 110V 220V 230V 380V or Custom
Working Temperature Range: 5~50°C
It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. and air controls ( lab, factory, etc.)
We have solenoids available in AC/DC and various size NPT threads as welll
| Model | 3V110-M5 | 3V120-M5 | 3A110-M5 | 3A120-M5 | 3V110-06 | 3V120-06 | 3A110-06 | 3A120-06 |
| Position and Way NO. | Two-position Three-way | Two-position Three-way | ||||||
| Effective Sectional Area | 10mm²(CV=0.56) | 12mm²(CV=0.67) | ||||||
| Port Size | Air inlet=Air Outlet=Exhaust=M5×0.8" | Air inlet=Air Outlet=Exhaust=G1/8 | ||||||
| Working Medium | Air (40Micron Filtered) | |||||||
| Acting Type | Inner Guide Type | |||||||
| Working Pressure | 0.15~0.8MPa | |||||||
| Max.Pressure Resisance | 1.2MPa | |||||||
| Working Temperature | 5~50°C | |||||||
| Voltage Range | ±10% | |||||||
| Power Consumption | AC:2.8VA DC:2.8W | |||||||
| Insulation&Protection Class | F Class.IP 65 | |||||||
| Wiring Form | Lead wire or Connector type | |||||||
| Max.Frequency | 5 Cycle/Secretary | |||||||
| ShortestActivate Time | 0.05 Second | |||||||
