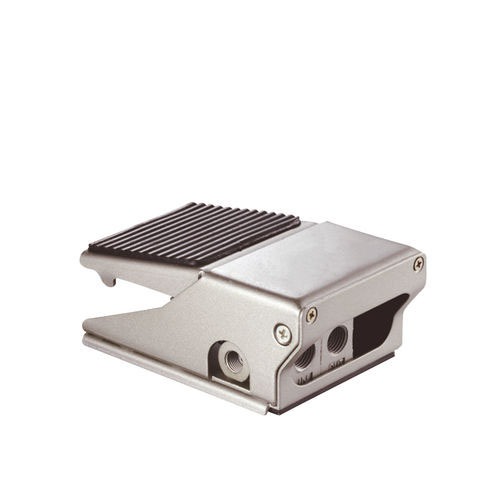

Aluminum Air Compressed Pneumatic 1/4 Foot Pilot Valve
HOME -
PRODUCTS -
Pneumatic Valve -Directional Valve - Aluminum Air Compressed Pneumatic 1/4 Foot Pilot Valve
FV/4F 3/2,4/2,5/2,
Technical data
Medium:
Compressed and filtered air,
Ambient Temperature:0-60
Operating Pressure: 0-8bar
Port Size:g1/4
Material:
Body:Aluminum Alloy
Seals:NBR
Protective Cover:ABS
| Model | 4F210-08 | 4F210-08L | 4F210-08G | 4F210-08LG | FV420 | FV320 |
| Working medium | 40 Micron Filtered Air | |||||
| Position Number | 5/2 Way | 4/2 Way | 3/2 Way | |||
| Port Size | Inlet,Outlet,Exhaust Post = G1/4'' | Inlet,Outlet=G1/4'' Exhaust Post=G1/8'' | ||||
| Motion Pattern | Direct drive type | |||||
| Max.Resistance pressure | 0~0.8Mpa | |||||
| Working Temperature range | 0~60℃ | |||||
