China Wholesale JXPC RE-03 Pneumatic Solenoid Air Flow Control Valve
HOME -
PRODUCTS -
Pneumatic Valve -Directional Valve - China Wholesale JXPC RE-03 Pneumatic Solenoid Air Flow Control Valve

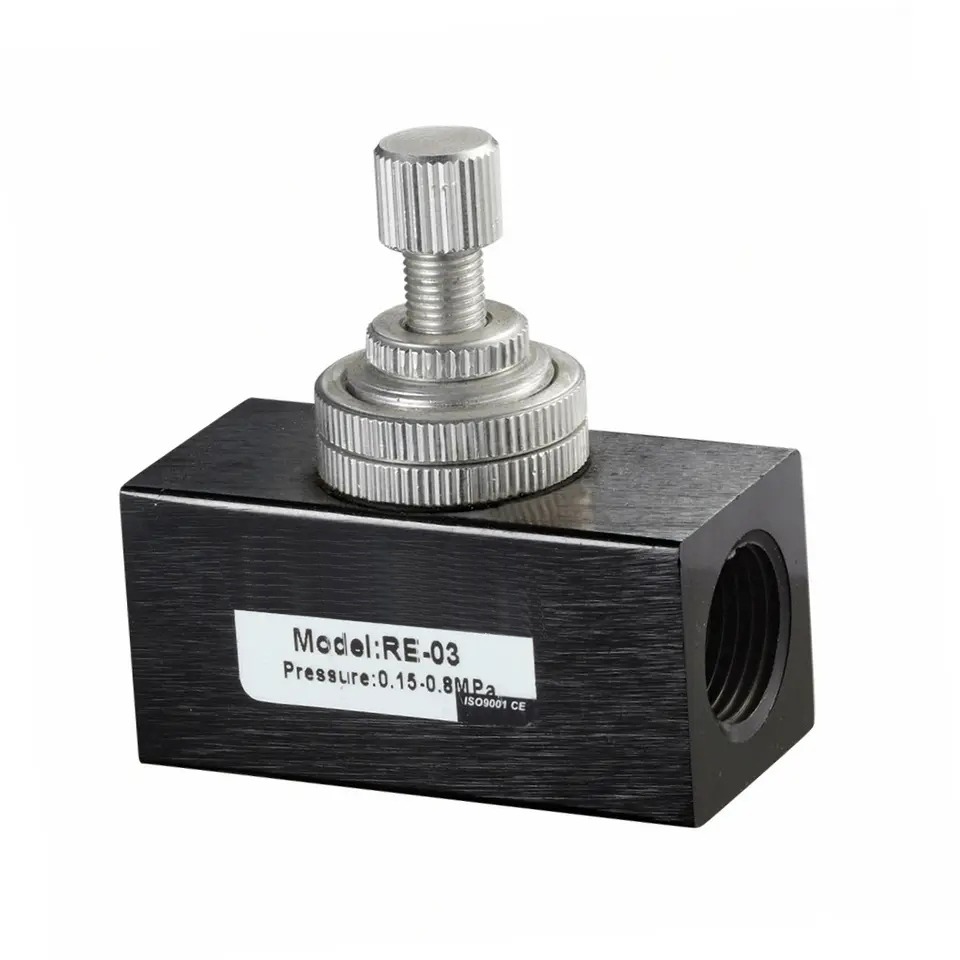

Product Name :Flow Control Valve
Model : RE-03
Working Pressure: 0~0.95Mpa
Port Size: G1/8" G1/4" G3/8" G1/2"
Used to control the air to one direction of air system, then adjust the air flow speed. Used in various fields, such as vehicle assembly line, electronics, machine tool.
| ASC/RE | ||||||||
| model | Accurate type | Ordinart type | ||||||
| ASC-06 | ASC-08 | ASC-10 | ASC-15 | RE-01 | RE-02 | RE-03 | RE-04 | |
| port sze | G1/8" | G1/4" | G3/8" | G1/2" | G1/8" | G1/4" | G3/8" | G1/2" |
| working medium | AIR | |||||||
| working pressure range | 0-0.95Mpa | |||||||
| operating temperature range | 0-60℃ | |||||||
