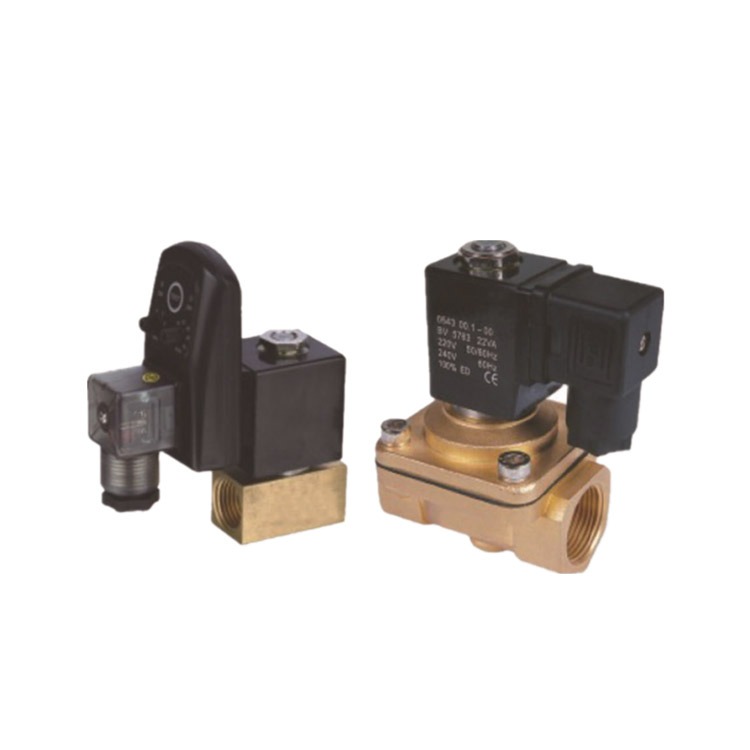

JXPC Type Pneumatic Brass 2/2 Way Pulse Valve
HOME -
PRODUCTS -
Pneumatic Valve -Fluid Solenoid Valve - JXPC Type Pneumatic Brass 2/2 Way Pulse Valve
| Technical data | |
| Working pressure:0-16bar/230psi | |
| Compressed air temperature:0-130 | |
| Ambient Temperature:0-60 | |
| Timer Set:0.5...10 sec & 0.5...45min |
| Model | JXF-25 | JXF-40 | JXF-50 | JXF-65 | JXF-76 |
| Working medium | Clean Air | ||||
| Acting Type | Pilot Type,N.C. | ||||
| mm/orifice size | 25 | 40 | 50 | 65 | 76 |
| Port Size | 1 | 1-1/2 | 2 | 2-1/2 | 3 |
| Working Pressure | 0.4~0.66MPa | ||||
| Max. Pressure Resistance | 9MPa | ||||
| Working Temperature | -10~55 | ||||
| Voltage Range | -15~10% | ||||
| Relative Humidity | <85% | ||||
| Diaphragm Life | ≤1000000 | ||||
| Valve body Material | Aluminum | ||||
| Seal Material | NBR | ||||
