PRODUCTS

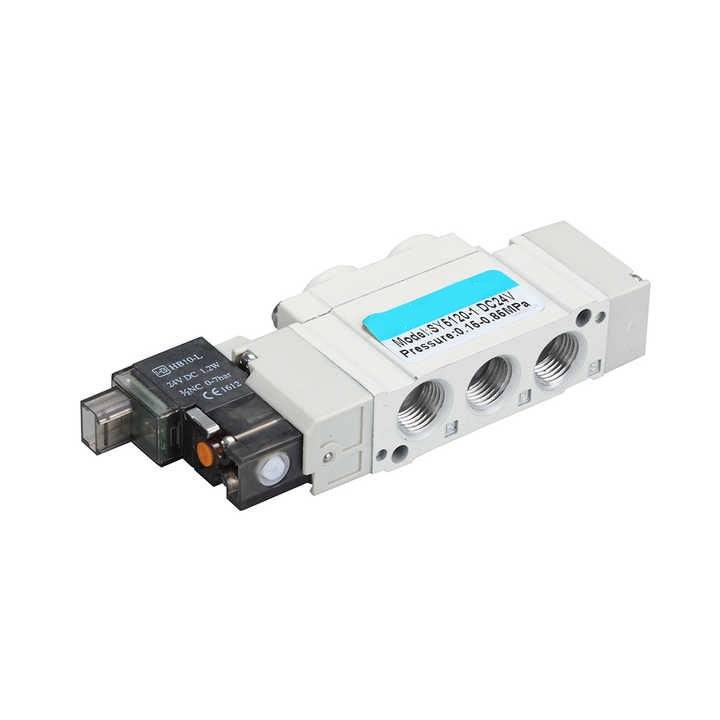

Hot Sale Solenoid Pneumatic Lower Power 4Y Series Air Control Valve
HOME -
PRODUCTS -
Pneumatic Valve -Directional Valve - Hot Sale Solenoid Pneumatic Lower Power 4Y Series Air Control Valve
Technical Data
Medium: compressed and filtered air ,no need lubricated
Port size: M5,G1/8,G1/4
Working Pressure:1.5-7bar
3/2,5/2,5/3 actuated valve
Low power consumption
Multiple voltage optional
Integrated connectors
Interchangeable with SY series
| Working medium | Air (40Micron Filtered) | |||||||
| ActingType | Inner Guide Type | |||||||
| working pressure | 0.15~0.8MPa | |||||||
| Max.working pressure | 1.2MPa | |||||||
| Working temperatur | 5~50℃ | |||||||
| Voltage Range | ± 10% | |||||||
| Power consumption | AC:5.5VA DC:4.8W | |||||||
| Insulation & Protection Class | F Class. IP 65 | |||||||
| Wiring Form | Lead wire or Connector type | |||||||
| Max.Frequency | 5 Cycle/Sec | |||||||
| Shortest Activate time | 0.05 Second | |||||||
