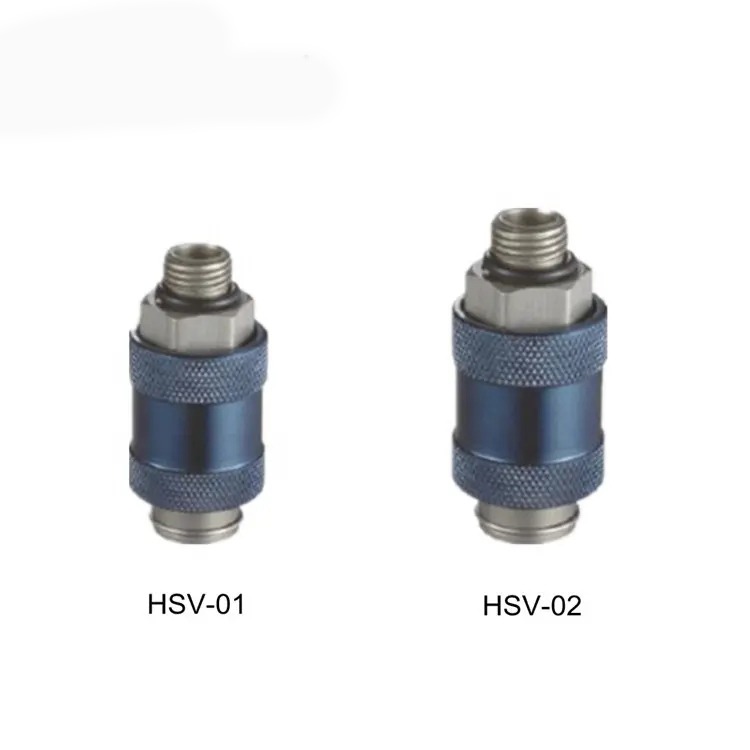

JXPC Type Slide Air Pressure Pneumatic Valve
Medium:
Compressed and filtered air
Ambient Temperature: 0-60
Operating pressure:0-10 bar
Port size:g1/8,g1/4,g3/8,g1/2
Material:
Body: Aluminum Alloy
Seals:NBR
Female or male thread optional
| Model | HSV-01 | HSV-02 | HSV-03 | HSV-04 |
| Port Size | G 1/8'' | G 1/4'' | G 3/8'' | G 1/2'' |
| Orifice Size | 4mm | 7mm | 10mm | 12mm |
| Working Medium | Filtered and Compressed Air | |||
| Working pressure | 0~1.0Mpa | |||
| Ambient Temperature | 5~60℃ | |||
| Operating Force | 20N | |||
| Symbol / Model | A | B | C | D | E | F | L |
| HSV-01 | 25 | 13 | G1/8" | 9 | 28 | 14 | 48 |
| HSV-02 | 30 | 18 | G1/4" | 11 | 32 | 19 | 58 |
| HSV-03 | 35 | 21 | G3/8" | 14 | 39 | 22 | 68 |
| HSV-04 | 40 | 26 | G1/2" | 15 | 45 | 27 |
