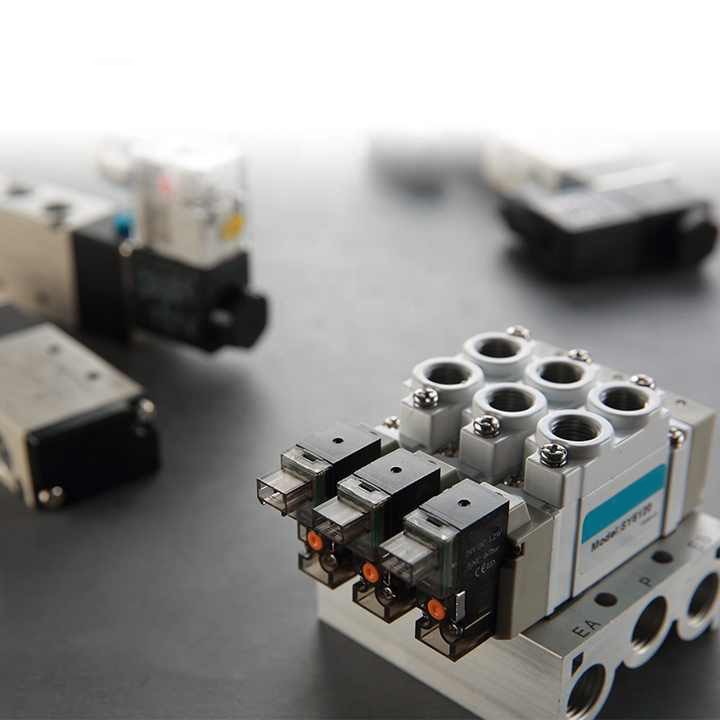

JXPC Type 4M Compressed Solenoid Air Control Valve
HOME -
PRODUCTS -
Pneumatic Valve -Directional Valve - JXPC Type 4M Compressed Solenoid Air Control Valve
Technical data
Medium:compressed and filtered air
Port size: M5,G1/8,G1/4,G3/8,G1/2
Working Pressure:1.8-8bar
Coil: 100 coil
200 coil
3/2,5/2,5/3 actuated valve
internal pilot
Manifold system for easy installation
spare parts like coil,armature ,seals
can be offered
| Position way NO. | Two-position Three-way | |||||||
| Effective sectional area | 25mm(CV=1.40) | 30mm(CV=1.68) | ||||||
| Port size | Air inlet=Air outlet=Exhaust=G1/4'' | Air inlet=Air outlet=G3/8'' Exhaust=G1/4'' | ||||||
| Working medium | Air (40Micron Filtered) | |||||||
| ActingType | Inner Guide Type | |||||||
| working pressure | 0.15~0.8MPa | |||||||
| Max.working pressure | 1.2MPa | |||||||
| Working temperatur | 5~50 | |||||||
| Voltage Range | ± 10% | |||||||
| Power consumption | AC:5.5VA DC:4.8W | |||||||
| Insulation & Protection Class | F Class. IP 65 | |||||||
| Wiring Form | Lead wire or Connector type | |||||||
| Max.Frequency | 5 Cycle/Sec | |||||||
| Shortest Activate time | 0.05 Second | |||||||
