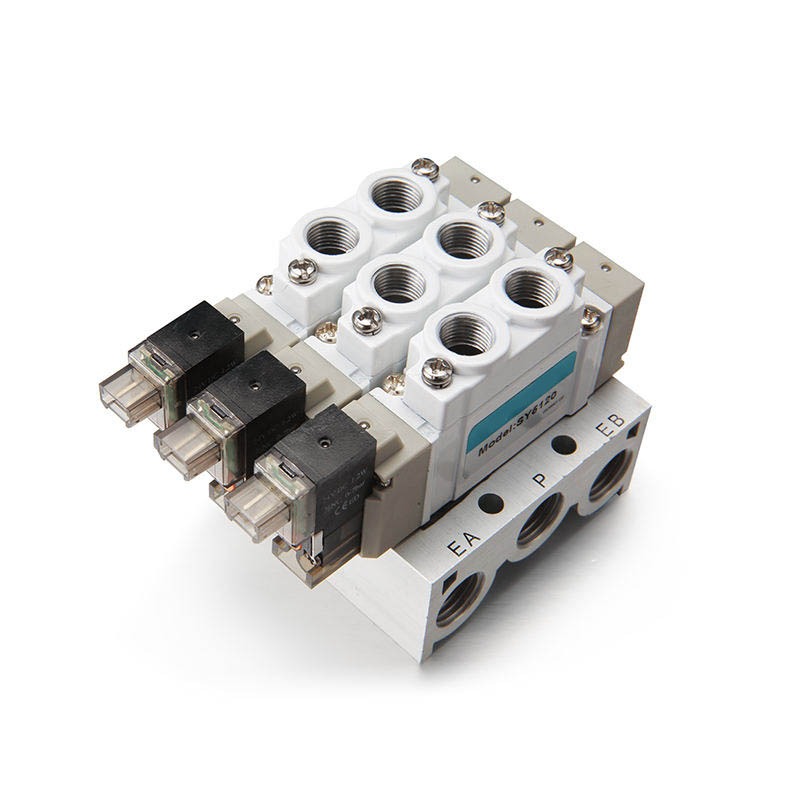

JXPC Type High Efficiency Solenoid Air Control Valve
HOME -
PRODUCTS -
Pneumatic Valve -Directional Valve - JXPC Type High Efficiency Solenoid Air Control Valve
Technical data:
Medium:Compressed and filtered air ,no need lubricated.
Port Size: M5,G1/8,G1/4
Working Pressure:1.5-7 bar
3/3,5/2,5/3 actuated Valve
Low Power consumption
Multiple voltage optional
Integrated connectors
Interchangeable with SY series
| Model | 3V410-15 | 3V420-15 | 3A410-15 | 3A420-15 |
| Position and Way NO. | Two-position Three-way | |||
| Effective Sectional Area | 50mm(CV=2.79) | |||
| Port Size | Air Inlet=Air outel=Exhaust=G1/2 | |||
| Working Medium | Air(40Micron Filtered) | |||
| Acting Type | Inner Guide Type | |||
| Working pressure range | 0.15~0.8Mpa | |||
| Max.Pressure Resisance | 1.2Mpa | |||
| Working Temperature range | 5~50℃ | |||
| Voltage Range | ±10% | |||
| Power Consumptuion | AC:5.5VA DC:4.8W | |||
| Insulation Protection Class | F Class:IP 65 | |||
| Wiring Form | Lead Wire or Connector type | |||
| Max.Frequency | 5 Cycle Secretary | |||
| Shortest Activate Time | 0.05 Second | |||
