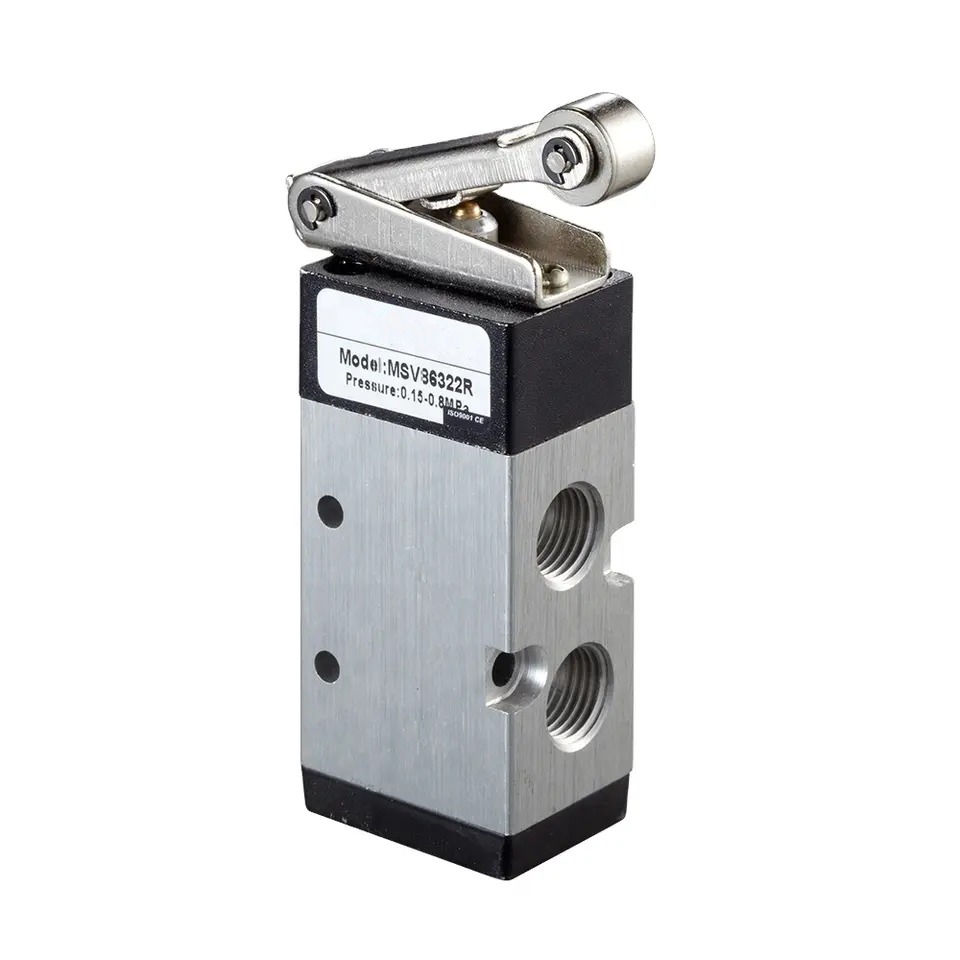

JXPC Type Pneumatic Manually Operated Mechanical Spool Valve
HOME -
PRODUCTS -
Pneumatic Valve -Directional Valve - JXPC Type Pneumatic Manually Operated Mechanical Spool Valve
Technical Data
Medium:compressed and filtered air
Ambient Temperature:0-60
Operating Pressure:0-8 bar
Port Size: G1/8 G1/4
Body: Aluminum Alloy
Seals: NBR
| Specification | ||
| Model | MVS86522 | MVS98322 |
| Air (40Micron Filtered) | ||
| Position and Way NO. | 5/2 Way | 3/2 Way |
| Max.Resistance pressure | 0~0.8Mpa | |
| Working Temperature range | 0~60℃ | |
| Effective sectional area | 16mM(CV=0.89) | |
| Port size | G 1/4'' | |
