High Quality JXPC Type Aluminum Alloy Pneumatic Slide Valve
HOME -
PRODUCTS -
Pneumatic Valve -Directional Valve - High Quality JXPC Type Aluminum Alloy Pneumatic Slide Valve
· Product Name :MSV Series Mechanical Push Button Valve
· Model : MSV86322PB
· Type :two-positon three-Way
· Working Temperature Range: 0~60°C
· Port Size:G1/4"
· This is a hand controlled pneumatic mechanial valve of good performance and durability.
this air control valve offers reliability and long life and installation, maintenance, and control are made simple.
This pneumatic mechanical valve is used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.

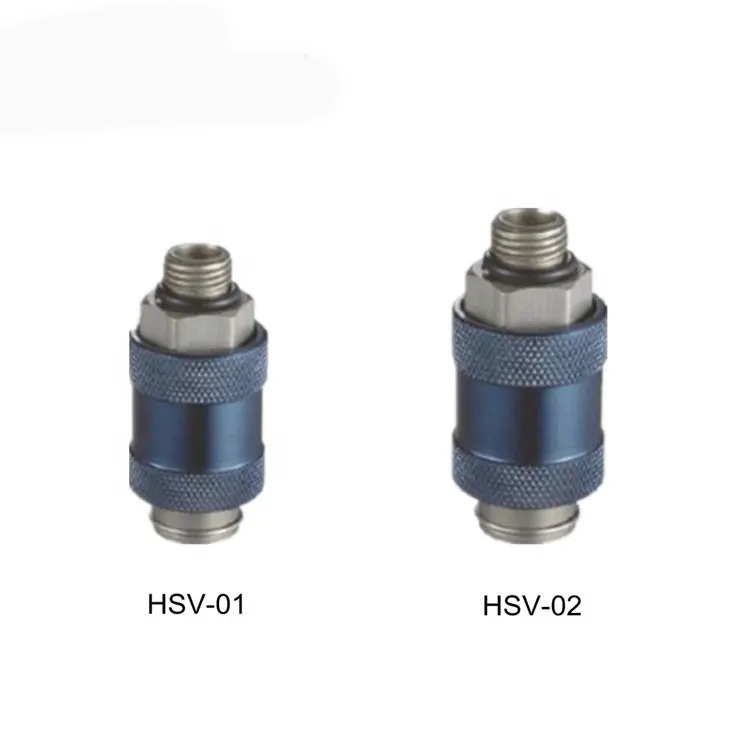

| Model | HSV-01 | HSV-02 | HSV-03 | HSV-04 |
| Port Size | G 1/8'' | G 1/4'' | G 3/8'' | G 1/2'' |
| Orifice Size | 4mm | 7mm | 10mm | 12mm |
| Working Medium | Filtered and Compressed Air | |||
| Working pressure | 0~1.0Mpa | |||
| Ambient Temperature | 5~60℃ | |||
| Operating Force | 20N | |||
| Symbol / Model | A | B | C | D | E | F | L |
| HSV-01 | 25 | 13 | G1/8" | 9 | 28 | 14 | 48 |
| HSV-02 | 30 | 18 | G1/4" | 11 | 32 | 19 | 58 |
| HSV-03 | 35 | 21 | G3/8" | 14 | 39 | 22 | 68 |
| HSV-04 | 40 | 26 | G1/2" | 15 | 45 | 27 |
