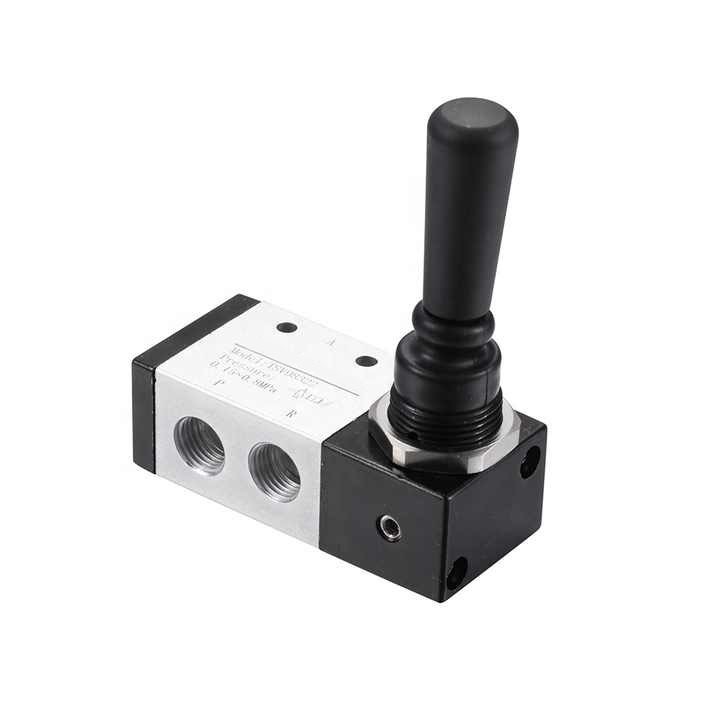

JXPC Type 5/2 Way Handle Push Pull Solenoid Valve
HOME -
PRODUCTS -
Pneumatic Valve -Directional Valve - JXPC Type 5/2 Way Handle Push Pull Solenoid Valve
| Symbol / Model | 4H210-08(06) | 4H230-08(06)-S Automatic rebound | 4H310-10(08) | 4H330-10(08)-S Automatic rebound | 4H410-15 | 4H430-15-S Automatic rebound |
| 4H230-08(06)-L | 4H330-10(08)-L | 4H430-15-L | ||||
| A | 76 | 95 | 96 | 115 | 126 | 147 |
| B | 56.5 | 75.5 | 75 | 91 | 102 | 123 |
| C | 31.5 | 31.5 | 40 | 60 | 55.5 | 76.5 |
| D | 22 | 22 | 27 | 27 | 34 | 34 |
| E | 95 | 95 | 100 | 100 | 110 | 110 |
| F | 6.5 | 6.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| G | 66.5 | 85.5 | 84 | 103 | 114 | 135 |
| H | 18 | 18 | 18 | 18 | 18 | 18 |
| I | 20 | 20 | 24 | 24 | 28 | 28 |
| J | 36 | 36 | 45 | 45 | 63 | 63 |
| K | 21 | 21 | 24 | 24 | 36 | 36 |
| L | 35 | 35 | 40 | 40 | 50 | 50 |
| M | 21 | 21 | 27 | 27 | 35 | 35 |
| N | G 1/8 | G 1/8 | G 3/8 | G 3/8 | G 1/2 | G 1/2 |
| O | G 1/4(1/8) | G 1/4(1/8) | G 3/4(1/8) | G 3/8(1/8) | G 1/2 | G 1/2 |
| P | 4.3 | 4.3 | 4.3 | 4.3 | 5.5 | 5.5 |
| Q | 1.5(-) | 1.5(-) | 2(-) | 2(-) | — | — |
| Specificatio | ||||||||
| Model | 4H210-06 | 4H210-08 | 4H230-08 | 4H310-08 | 4H310-10 | 4H330-10 | 4H410-15 | 4H430-15 |
| Working medium | 40 Micron Filtered Air | |||||||
| Motion Pattern | Direct Drive | |||||||
| Effective sectional area | 14mm(CV=0.78) | 16mm(CV=0.89) | 12mm
(CV=0.67) | 25mm(CV=1.4) | 30mm(CV=1.68) | 18mm(CV=1.00) | 50mm(CV=2.79) | 30mm(CV=1.68) |
| Port Size | Inlet,Outlet,Exhaust Post = G1/8 | Inlet,Outlet=G1/4 Exhaust Post=G1/8 | Inlet,Outlet,Exhaust Post = G1/4 | Inlet,Outlet,Exhaust Post = G1/4 | Inlet,Outlet =G3/8 Exhaust Post =G1/4 | Inlet,Outlet,Exhaust Post = G 1/2'' | ||
| working pressure range | 0~0.8Mpa | |||||||
| Operating Temperature range | 0~60℃
| |||||||
