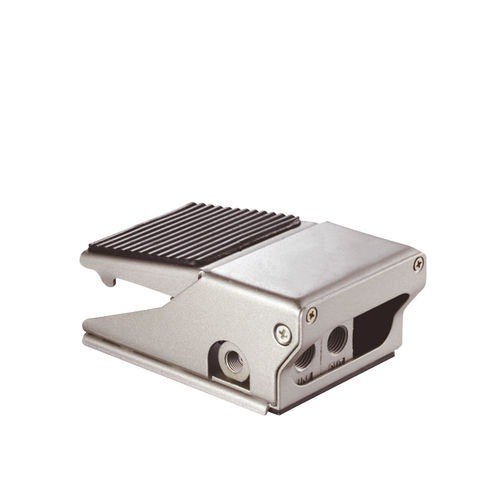

JXPC Foot Control Brake Valve Foot Valve
Product Name :Pneumatic Foot Valve
Model : 4F210-08
Type : 5/2 Way
Working Temperature Range: 0~60°C
Port Size:Inlet.Outlet,Exhaust Post=G1/4" ; Inlet,Outlet=G1/4" Exhaust Post =G1/8"
It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. and air controls ( lab, factory, etc.)
| 4F/FV Series Foot Valve | ||||||

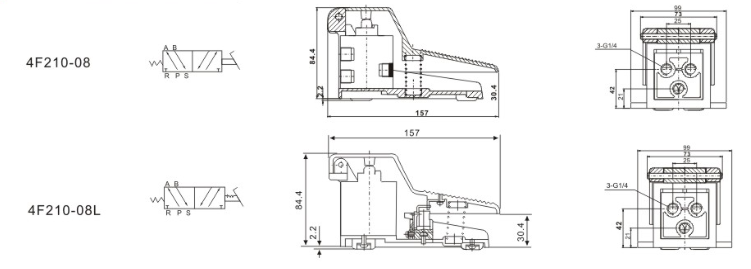

| Model | 4F210-08 | 4F210-08L | 4F210-08G | 4F210-08LG | FV420 | GV320 |
| Working Medium | Air (40Micron Filtered) | |||||
| Position and Way NO. | 5/2 WAY | 4/2 WAY | 3/2WAY | |||
| Port Size | Air inlet=Air Outlet=Exhaust=G1/4" | inlet, Outlet=G1/4" Exhaust=G1/8" | ||||
| Motion Pattern | Direct Drive Type | |||||
| Max.Pressure Resisance | 0~0.8MPa | |||||
| Working Temperature | 0~60°C | |||||
