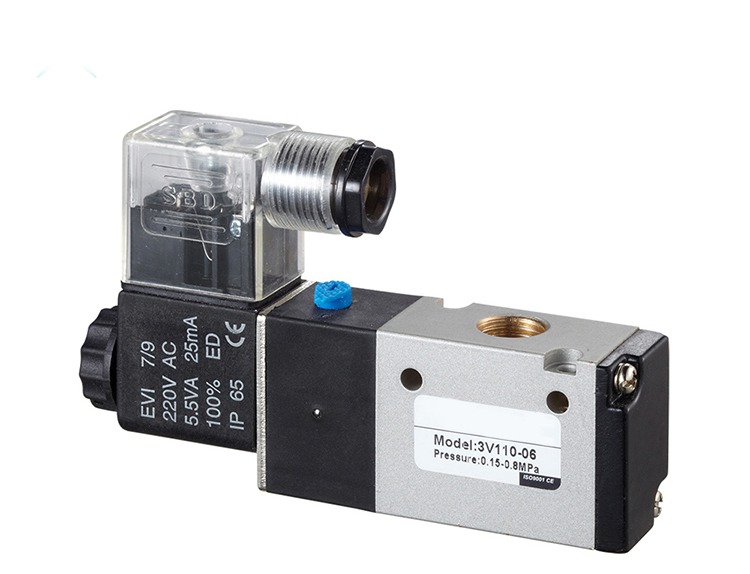

Two Position Three Way 12V Air Valve Solenoid
HOME -
PRODUCTS -
Pneumatic Valve -Directional Valve - Two Position Three Way 12V Air Valve Solenoid
Product Name :Pneumatic Solenoid Valve
Model : 3V220-08
Type : Two-Position Three-Way
Power Consumption:12V 24V 110V 220V 230V 380V or Custom
Working Temperature Range: 5~50°C
It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. and air controls ( lab, factory, etc.)
We have solenoids available in AC/DC and various size NPT threads as welll

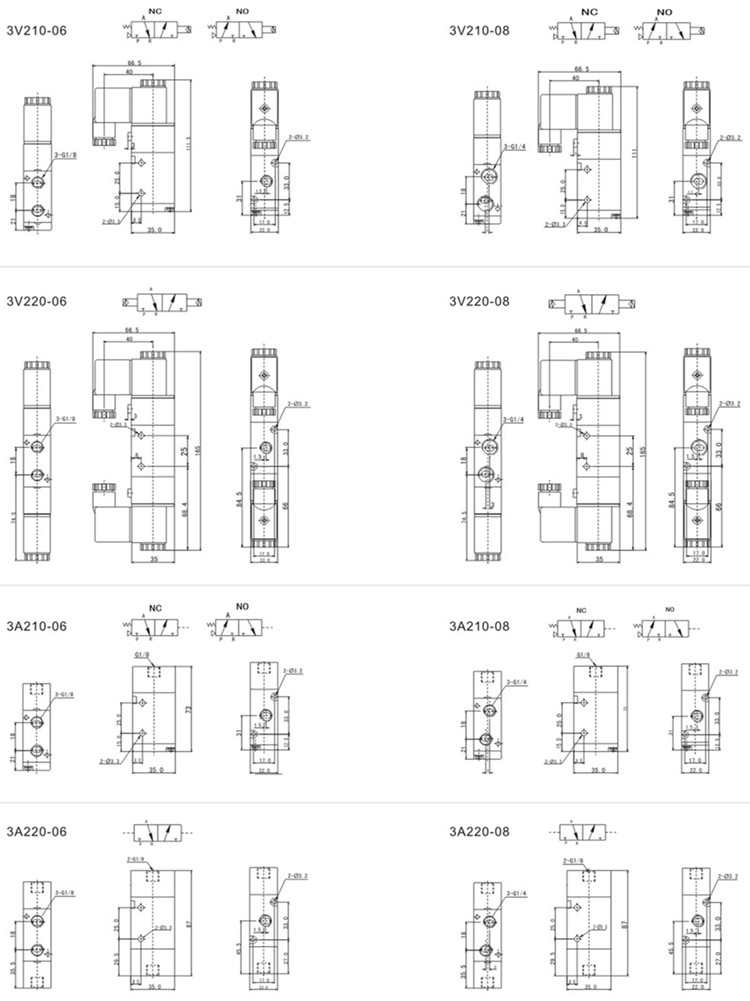

| Model | 3V210-06 | 3V220-06 | 3A210-06 | 3A220-06 | 3V210-08 | 3V220-08 | 3A210-08 | 3A220-08 |
| Position and Way NO. | Two-position Three-way | |||||||
| Effective Sectional Area | 14mm²(CV=0.78) | 16mm²(CV=0.89) | ||||||
| Port Size | Air inlet=Air Outlet=Exhaust=G1/8" | Air inlet=Air Outlet=G1/4' Exhaust=G1/8" | ||||||
| Working Medium | Air (40Micron Filtered) | |||||||
| Acting Type | Inner Guide Type | |||||||
| Working Pressure | 0.15~0.8MPa | |||||||
| Max.Pressure Resisance | 1.2MPa | |||||||
| Working Temperature | 5~50°C | |||||||
| Voltage Range | ±10% | |||||||
| Power Consumption | AC:5.5VA DC:4.8W | |||||||
| Insulation&Protection Class | F Class.IP 65 | |||||||
| Wiring Form | Lead wire or Connector type | |||||||
| Max.Frequency | 5 Cycle/Secretary | |||||||
| ShortestActivate Time | 0.05 Second | |||||||
