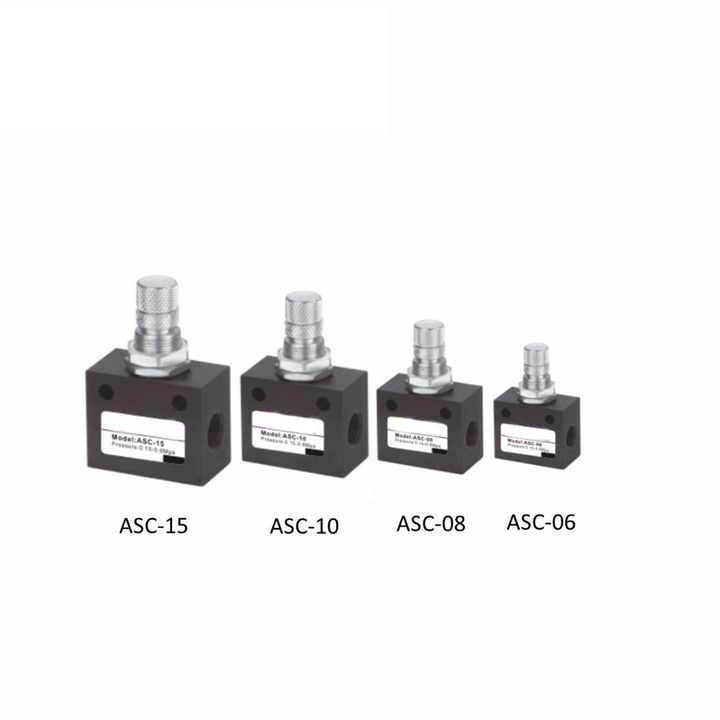

Low Temperature Variable Air Flow Actuator Flow Control Valve



ModelAccurate Type
ASC-06ASC-08ASC-10ASC-15
Port SizeG1/8''G1/4''G3/8''G1/2''
Working MediumAir
Working Pressure Range0~0.095Mpa
Operating Temperature Range0~60°C

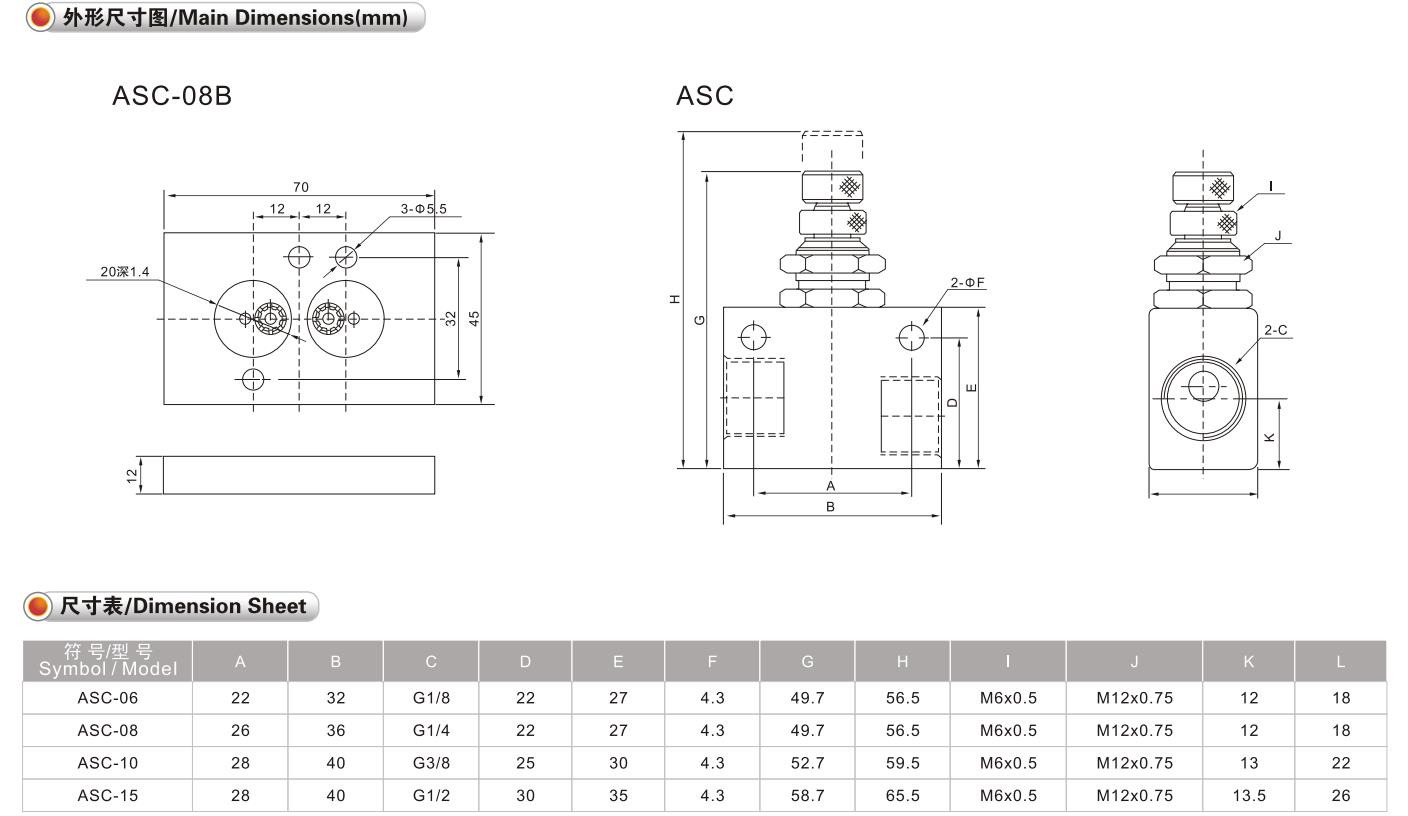

ASC-08B installation conforms to NUMAR standard for controlling speed of executive unit.

Other product info pls notify us, we will send you via email.
