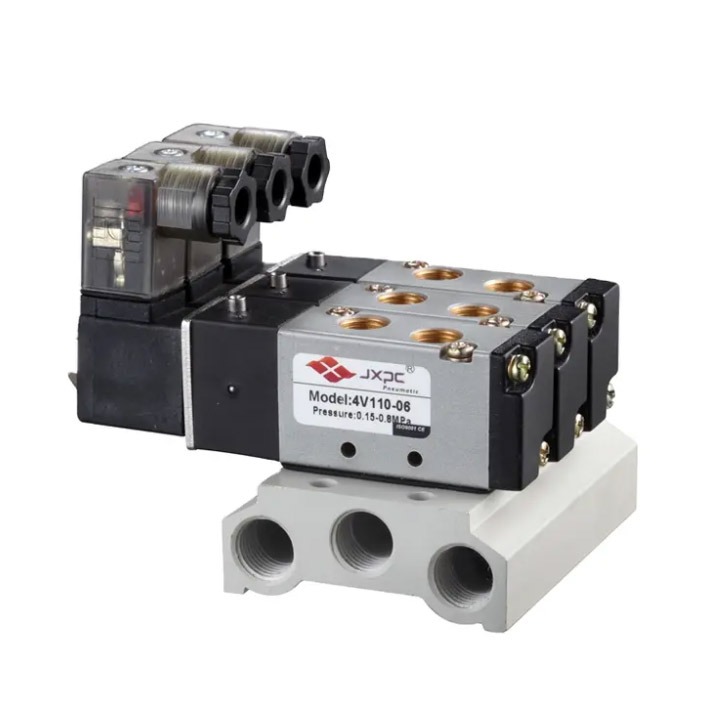

JXPC Brand 4V100 Series Standard Pneumatic Control Solenoid Valve
HOME -
PRODUCTS -
Pneumatic Valve -Directional Valve - JXPC Brand 4V100 Series Standard Pneumatic Control Solenoid Valve
| Specification | 4V110 Series Solenoid Valve | ||||
| Position and Way No. | Two-position/Three-position Five-way | ||||
| Port Size | Air Inlet=Air Outlet=Exhaust=M5*0.8 or G1/8 | ||||
| Working Medium | Air(40Micro Filtered) | ||||
| Acting Type | Inner Guide Type | ||||
| Working Pressure | 0.15-0.8MPa | ||||
| Max. Pressure Resisance | 1.2MPa | ||||
| Working Temperature | 5-50°C | ||||
| Voltage Range | ±10% | ||||
| Power Consumption | AC:2.8VA DC:2.8W | ||||
| Insulation&Protection Class | F Class. IP65 | ||||
| Wiring Form | Lead wire or Connector Type | ||||
| Max. Frequency | 5 cycle/secretary | ||||
| Shortest Activate Time | 0.05 second | ||||
| Technology Advantage | There are many advanced manufacturing equipments, skilled operators and professional technicians in our company, we can offer the 4V100 Series Solenoid Valve with stable quality and technical service. | ||||
| Price Advantage | The price of the 4V100 Series Solenoid Valve is 5-10% cheaperthan industry average,because we have our own production line and no intermediate merchant between us. | ||||
| Quality Advantage | Each piece of the 4V100 Series Solenoid Valve will be tested with advanced testing equipment before being sold out. | ||||
| Delivery Advantage | 5-7days quicker than the industry average because of our flexible machine process control. | ||||
| Application | 4V100 Series Solenoid Valve is widely used in many fields,such as fridge, air conditioning, Medical equipment, testing equipment, mechanical equipment and so on. | ||||
