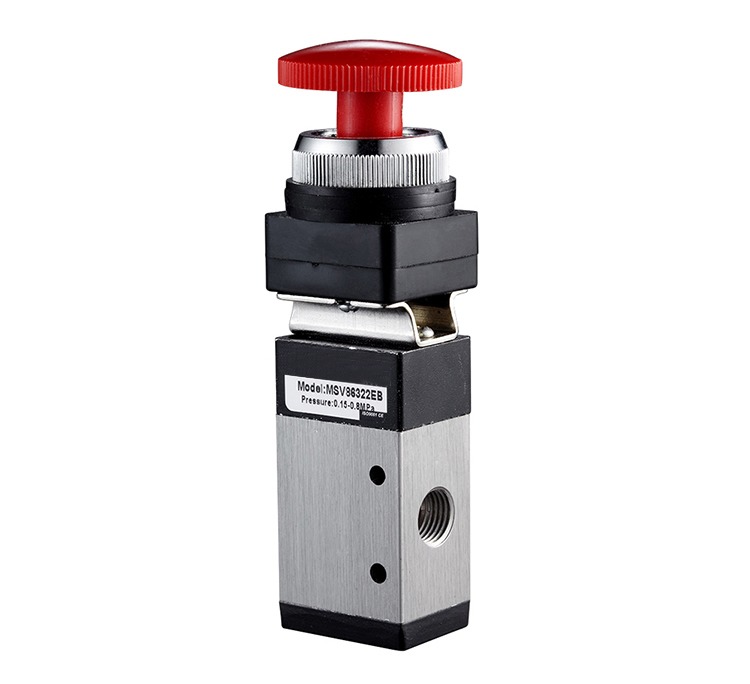

Product Name :MSV Series Mechanical Push Button Valve
Model : MSV86322R
Type :two-positon three-Way
Working Temperature Range: 0~60°C
Port Size:G1/4"
This is a hand controlled pneumatic mechanial valve of good performance and durability.
this air control valve offers reliability and long life and installation, maintenance, and control are made simple.
This pneumatic mechanical valve is used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
MSV Sreies Mechanical Valve | ||
Model | MSV86522 | MSV98322 |
Working Medium | Air (40Micron Filtered) | |
Position and Way NO. | Two-position Five-way | Two-position Three-way |
Pressure Range | 0~0.8MPa | 0~0.8MPa |
Temperature Range | 0~60°C | |
Port Size | G1/4" | G1/4" |
Effective Sectional Area | 16mm²(CV=0.89) | 16mm²(CV=0.89) |
