JXPC KA Series Air One Way No return Control Check Valve
HOME -
PRODUCTS -
Pneumatic Valve -Directional Valve - JXPC KA Series Air One Way No return Control Check Valve

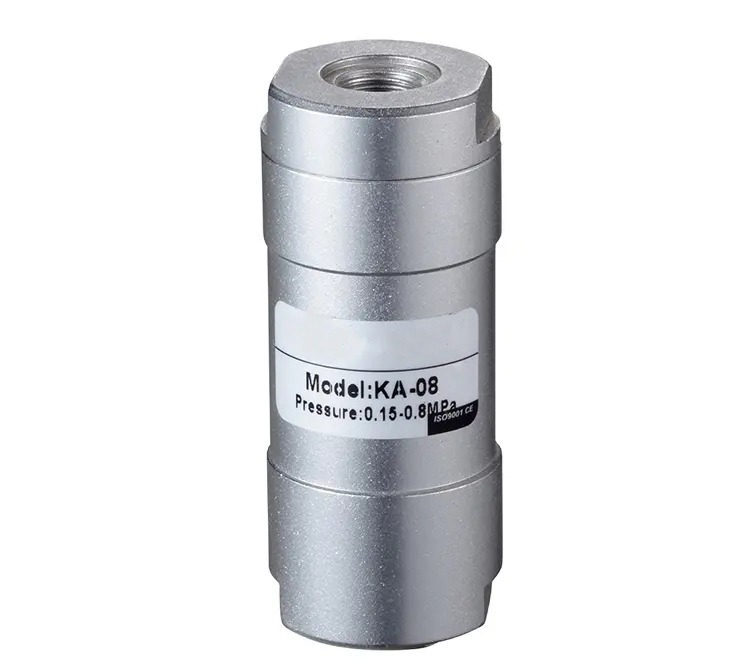

Product Name :No return valve
Model : KA-08
Working Pressure: 0.05~0.8Mpa
Port Size: G1/4"
The valve is undirectional control element. When Passing the valve,the working medium can only flow along a given direction. In operation ,when the medium pressure direction changes. The valve functions to stop the return of the meduim in the system. Therefore,the product is also called non-return valve.

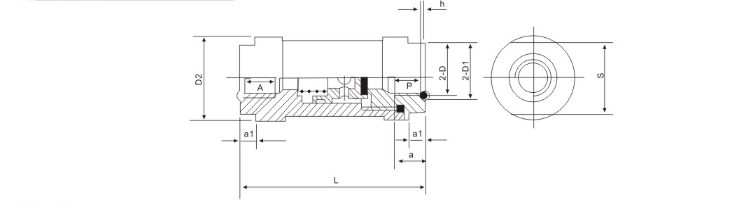

KA | ||||||||||
Model | KA-L3 | KA-L6 | KA-L8 | KA-L10 | KA-L15 | KA-L20 | KA-L25 | KA-L32 | KA-L40 | KA-L50 |
Working-pressure | 0.05-0.8Mpa | |||||||||
Environment temperature | -10~ -55℃ | |||||||||
Medium temperature | 0~+55℃ | |||||||||
Circulating ability | 4 | 10 | 20 | 40 | 60 | 110 | 190 | 300 | 400 | 650 |
Startup ability | ≤0.03Mpa | |||||||||
Leak out flow | 30 | 50 | 50 | 120 | 120 | 250 | 250 | 500 | 500 | 500 |
Respond time | 0.03 | |||||||||
life | ≥150 | |||||||||
